Steam power plant auxiliaries and accessories; (1922)
Croft, Terrell, 1880- ed, Dufflin, Daniel John, 1911- ed · New York, [etc] McGraw-Hill book company, Inc · leaf 133

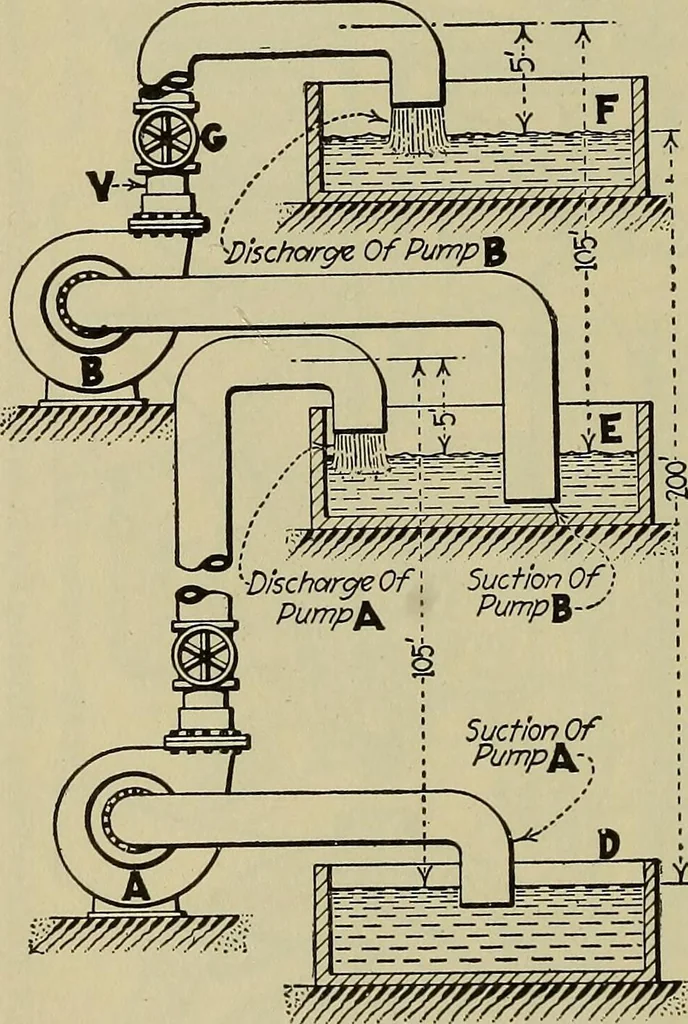

126. The Multi-Stage Centrifugal Pump (Figs. 130and 133) is really two ormore distinct pumps con-nected in series. Such apump has two or more im-pellers through which the water passes successively. Theimpellers are mounted on the same shaft and contained withinthe same casing. That is, the water is… … Fig. 132.—Showing How Water May BePumped To A Great Height By SeparateSteps Or Stages. Sec. 125] CENTRIFUGAL AND ROTARY PUMPS 113
Steam power plants · Pumping machinery
