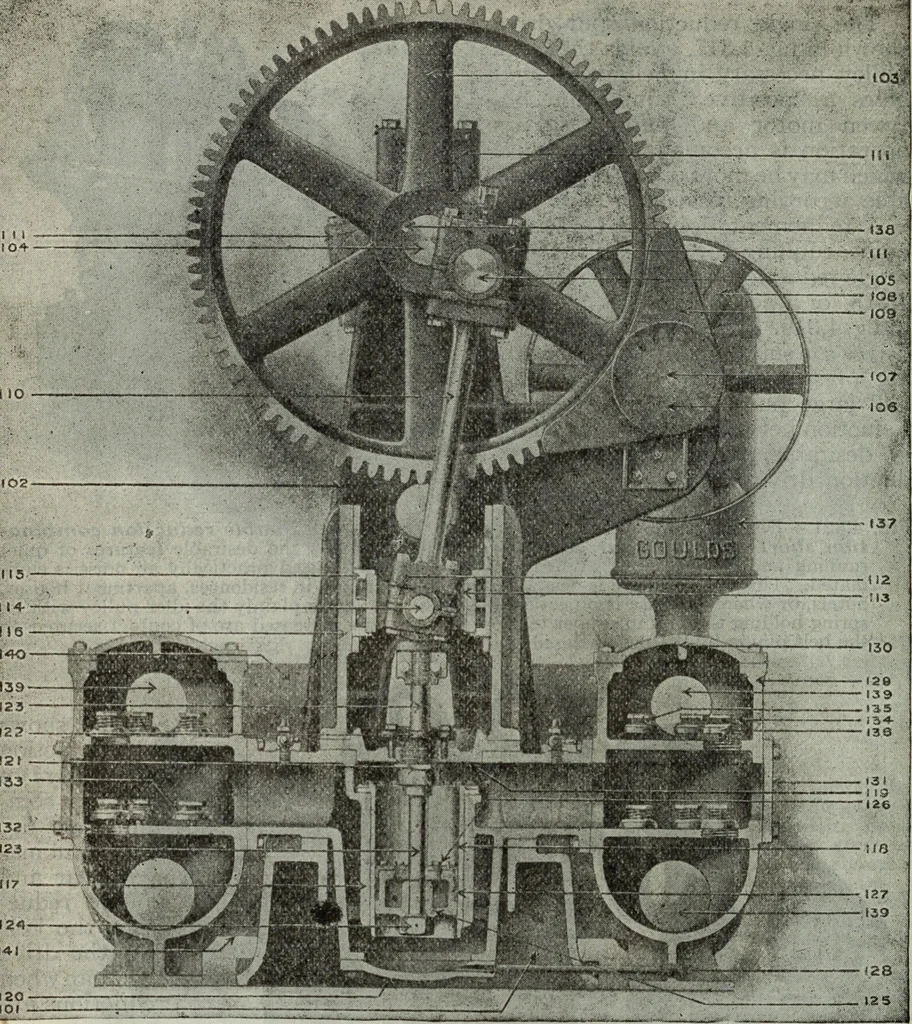

etaining a highdegree of compact-ness. Fig. 4,322.—Goulds double acting piston triplex pump with double reduction combinationlong belt and spur gear drive. As shown, the intermediate shaft carrying the spurpinion gear is extended and supported by outboard bearing for carrying the driving… … t 14-!16 ;*, 139 «23 122 ft !2f 133 h 132 123 ]---, 124- 14-1 -120 Fig. 4,323.—Sectional view of Goulds double acting piston triplex pump with double reductioncombination long belt and spur gear drive, showing construction. The parts are: 101, base;102, standard; 103, main gear; 104, crank shaft;…
