The modern gas tractor, its construction, utility, operation and repair; a practical treatise defining every branch of up-to-date gas tractor engineering, driving and maintenance in a non-technical manner. Considers fully all types of power plants and their components, methods of drive and speed changing mechanisms. Describes design and construction of all parts, their installation and adjustment as well as practical application of tractors in the field (1914)
Pagé, Victor Wilfred, 1885-1947 · New York : Norman W. Henley · leaf 260

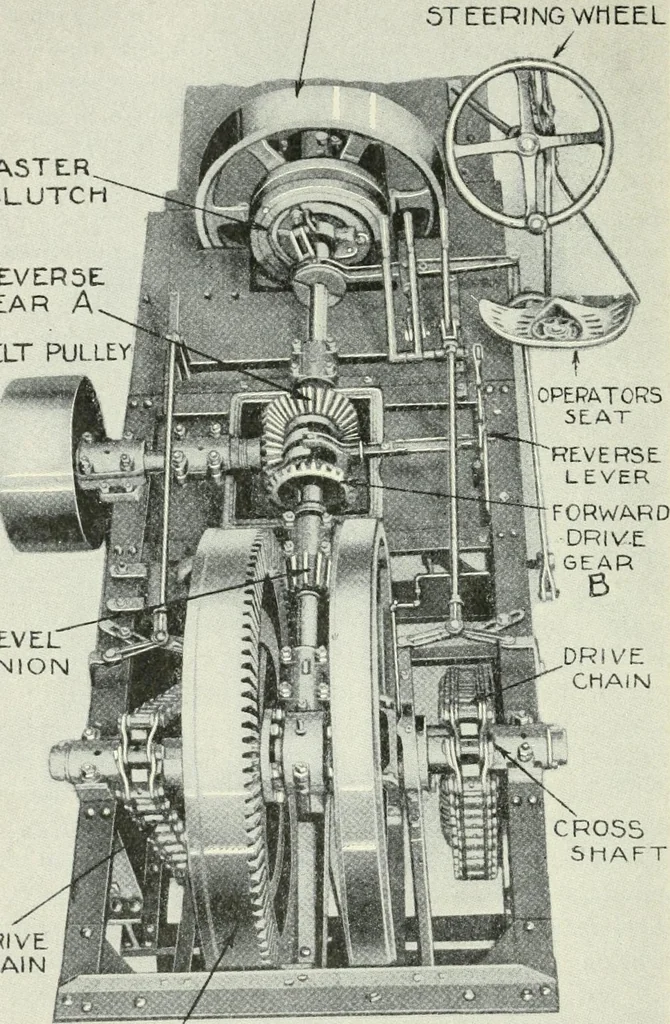

can clutch either bevel gear A orbevel gear B to the driving shaft. When in the neutralposition, if the master clutch is engaged, the tractorwill not move because there is no driving connectionbetween the bevel gearing and the driving shaft. When the positive jaw clutch is moved on the shaftso it… … BtVPINION DRIVECHAIN CROSS SHAFT DRIVE GEAR Fig. 104.—Showing Arrangement of Clutches and Drive Gearsof Holt Caterpillar Tractor. The Modern Gas Tractor 2(;.> the differential gear which turns the counter shaft onwhich the bull pinions are mounted, so the tractor ismoving ahead. If the clutch is…
