An illustration from Hawkins electrical guide ... : questions, answers & illustrations : a progressive course of study for engineers, electricians, students and those desiring to acquire a working knowledge of electricity and its applications ; a practical treatise, 1914, leaf 514

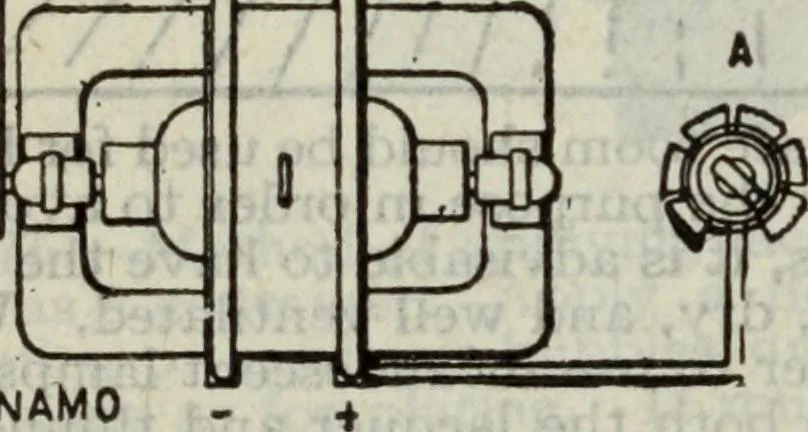

DYNAMO … A.FIELD RHEOSTAT B.VOLTMETER C.AMMETER D.SHUNT E.TANK RHEOSTAT F.NQ1 CONNECTION C.NO 2 CONNECTION H.NQ3CONNECTI0N L.ANODE ROD M.CATH0DE ROD Fig. 4,577.—Wiring details, two wire, four tank installation. distorted in shape, or melt under the ordinary methods of polishing.Such articles are polished…
