Hawkins electrical guide ... : questions, answers & illustrations : a progressive course of study for engineers, electricians, students and those desiring to acquire a working knowledge of electricity and its applications ; a practical treatise (1914)
Hawkins, N. (Nehemiah), 1833-1928 · New York : T. Audel & Co. · leaf 126

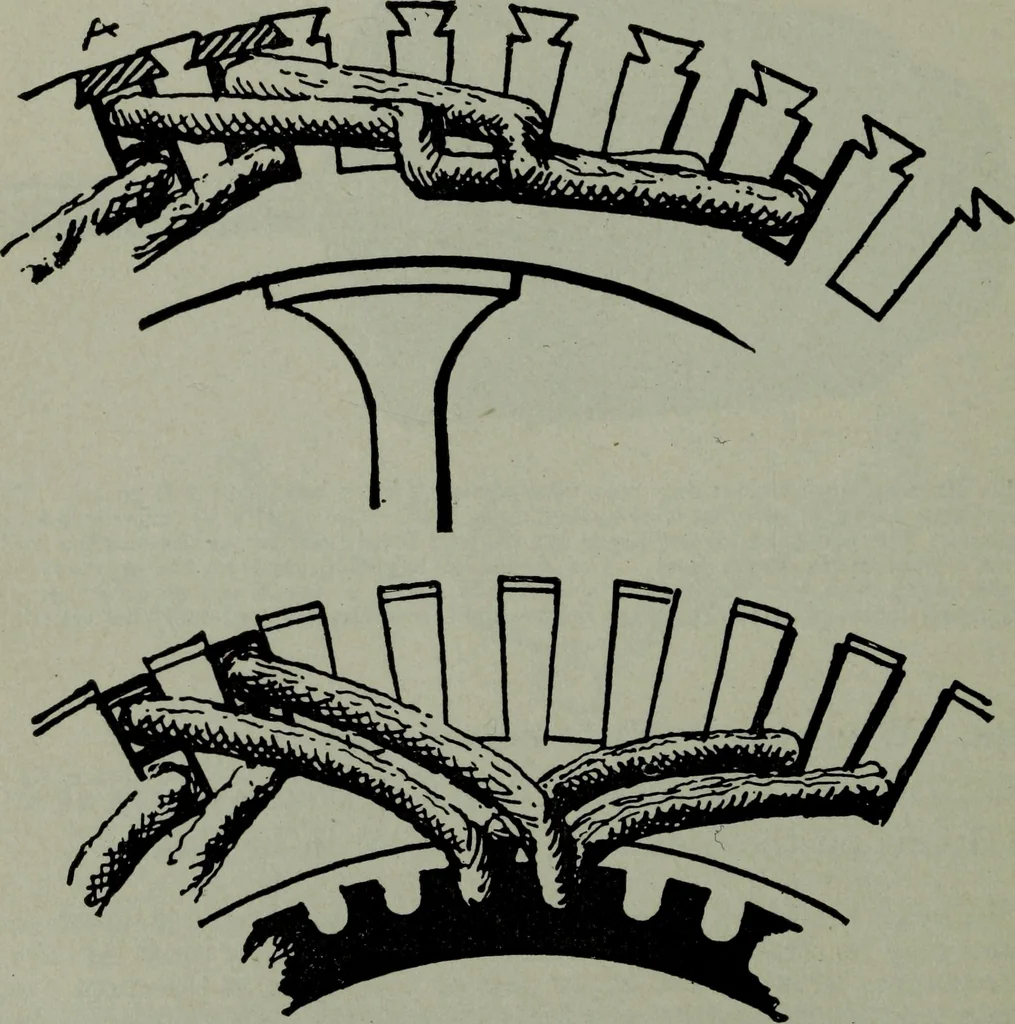

d to an insu-lated clamping device built up like a commutator and for that reasoncalled a false commutator. 338 HAWKINS ELECTRICITY Ques. How are the inductors arranged in evolutewinding? Ans. In fig. 373, it will be seen that the ends of the evoluteconnectors lie in two planes, hence the inductors… … Figs. 372 and 373.—Barrel and evolute windings; end views showing placement of coils.When all the coils are wound on the former, the placing of them on the armature is a simplematter. After insulating the slots, the winder begins at any convenient slot, and insertsthe coils as shown. Before he can…
Electrical engineering
Internet Archive · Brigham Young University · Public Domain Mark 1.0. Free to use for anything.
