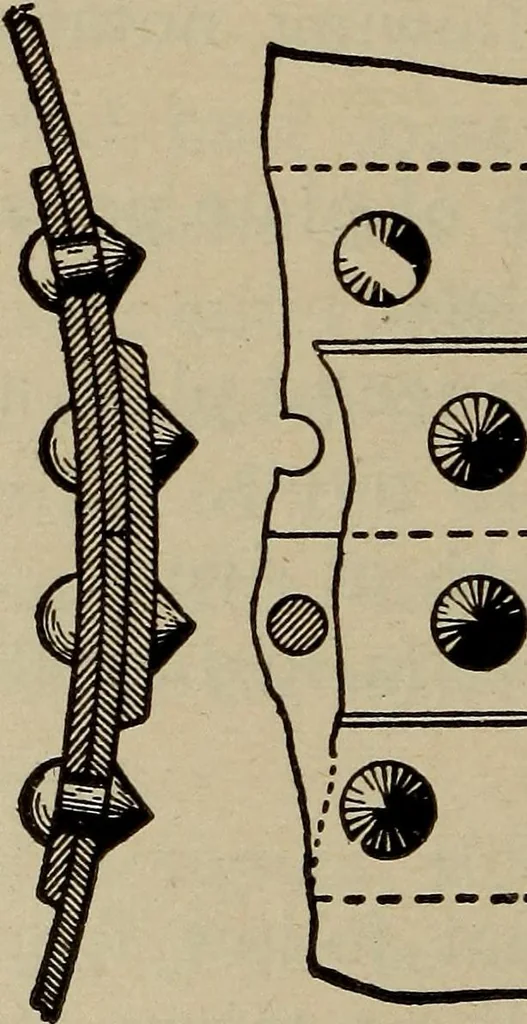

equalto the pitch or distance/, Fig. 20. The dimensions ofthe joint under consid-eration are as follows:P = 3^in.,T=T\in., D= I in. (which is also di-ameter of driven rivet).The strength of the unit strip of solid plate isP x T x T.S. = 85,312. The strength of net section of plate after drilling… … K— > Figure 21
