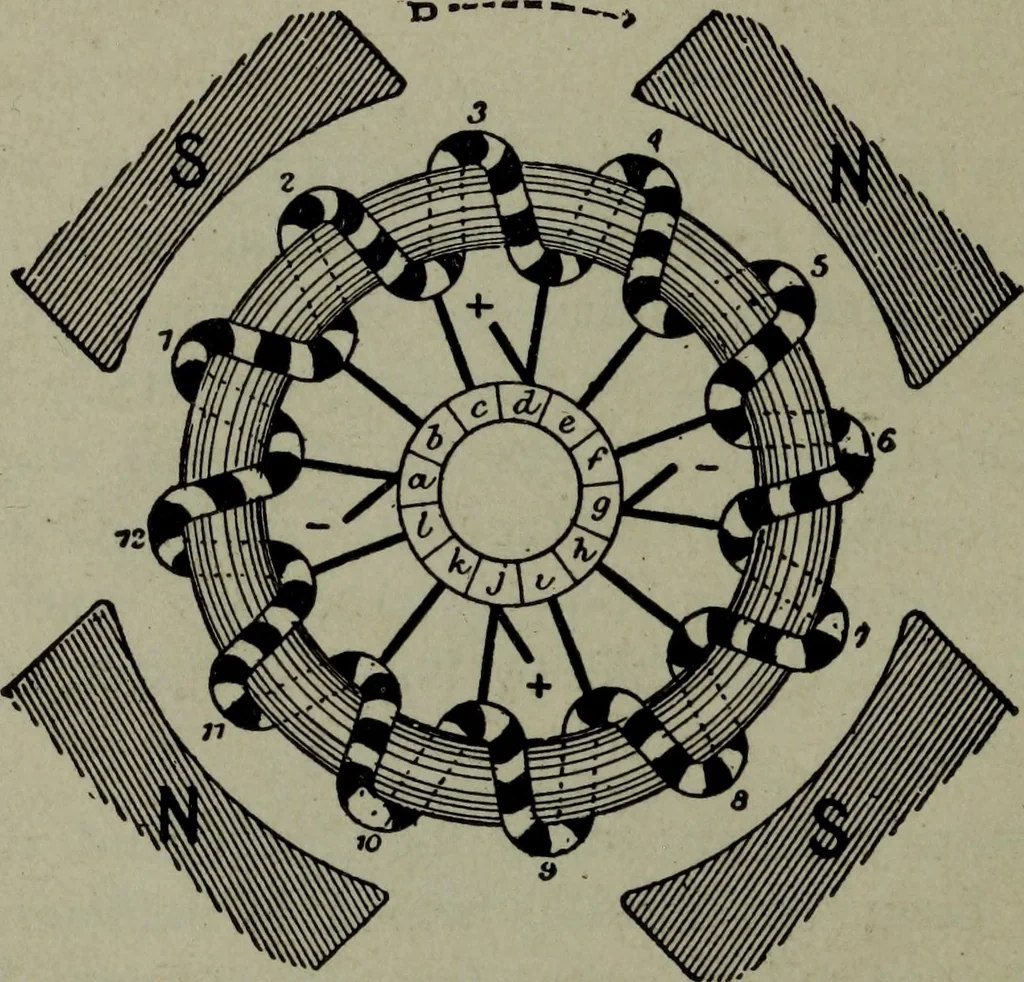

E.—The front end means the end at which the commutator is located. Arma-tures are most conveniently regarded from this end, the opposite end being known as theback end. 230 HAWKINS ELECTRICITY Winding Diagrams and Winding Tables.—In the con-struction of armatures, instructions to winders are given… … Fig. 254,- -End of ring winding for a four pole machine. An end view is simply a view showingthe arrangement of the armature inductors and connections looking from the front orcommutator end. A developed view of the above winding is shown in fig. 257. There are three kinds of winding diagram: 1.…
