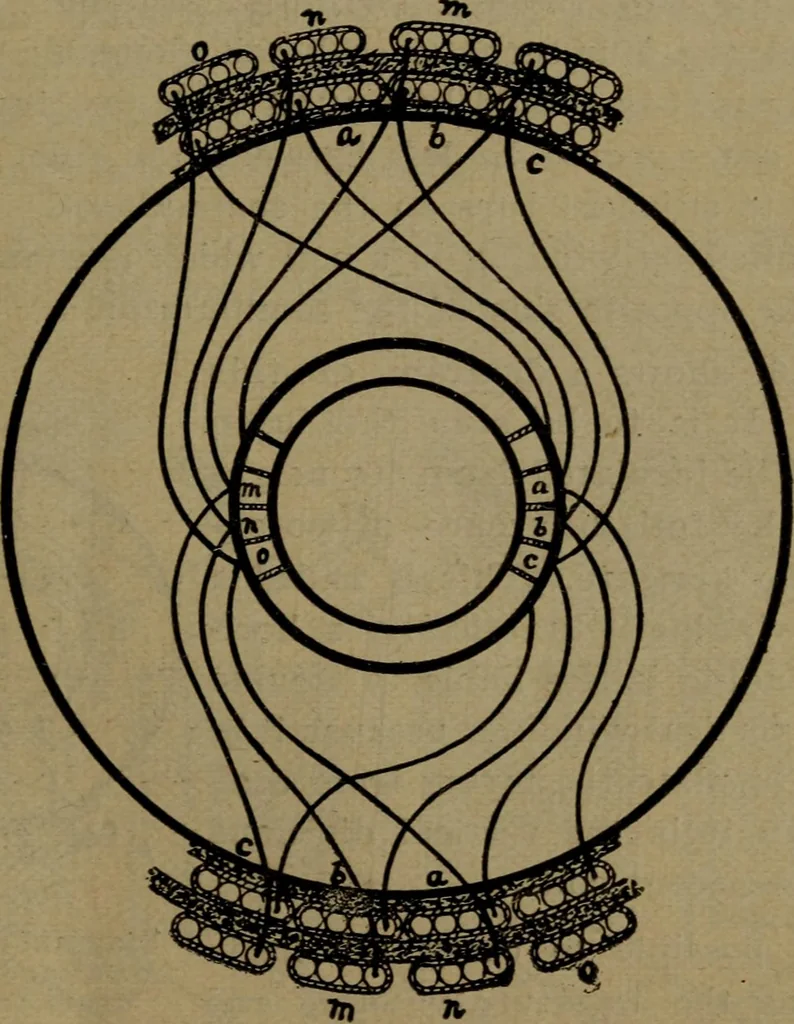

tator, it will be necessary to wind on a second layer 159 of Wires over the firs>t layer. Now between anytwo ordinary coils in eit-her layer of the armaturewinding there will be only the. diffe.rence of poten-tial or voltage that exists between two adjacent barsin the commutator. When the last… … Figure 60 Diagram of connection of bipolar armature, horizontal winding. 160 full voltage which the armature is designed t(3 carry. There-fore, while it is not necessary to insulate between adjacentcoils in the same layer, it is necessary to carefully insulatebetween the first and last coils that…
