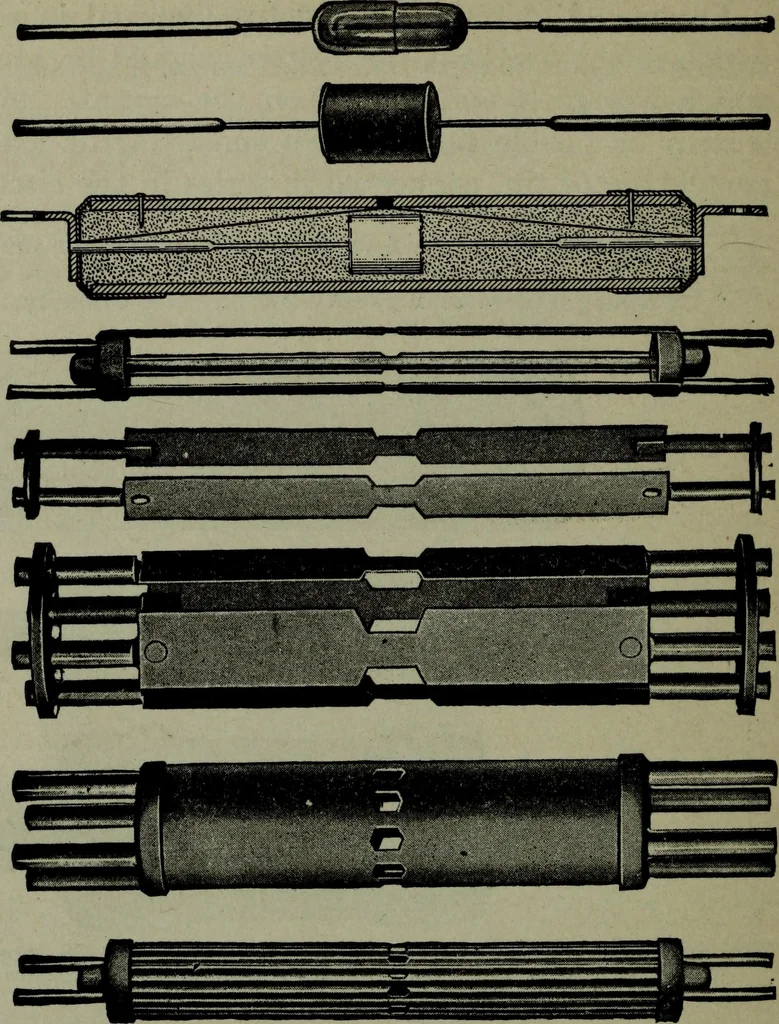

rrent, but because of insufficient area of,contact, or loose contact of fuse and wires; the overload thus causedresults in heating and frequently melts the fuse. Ques. Where should fuses be placed? Ans. They should be inserted wherever the size of wire changesor wherever there is a branch of… … Fig. 477 Fig. 478 Figs. 471 to 478.—Interior construction of D. & W. fuses. In the manufacture of these tuses,four types of fuse link are used according to capacity of fuse, and classified as: 1, air drumlink; 2, flat link; 3, multiple link; 4, cylinder link. In the air drum link, figs. 471 and…
