Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 188

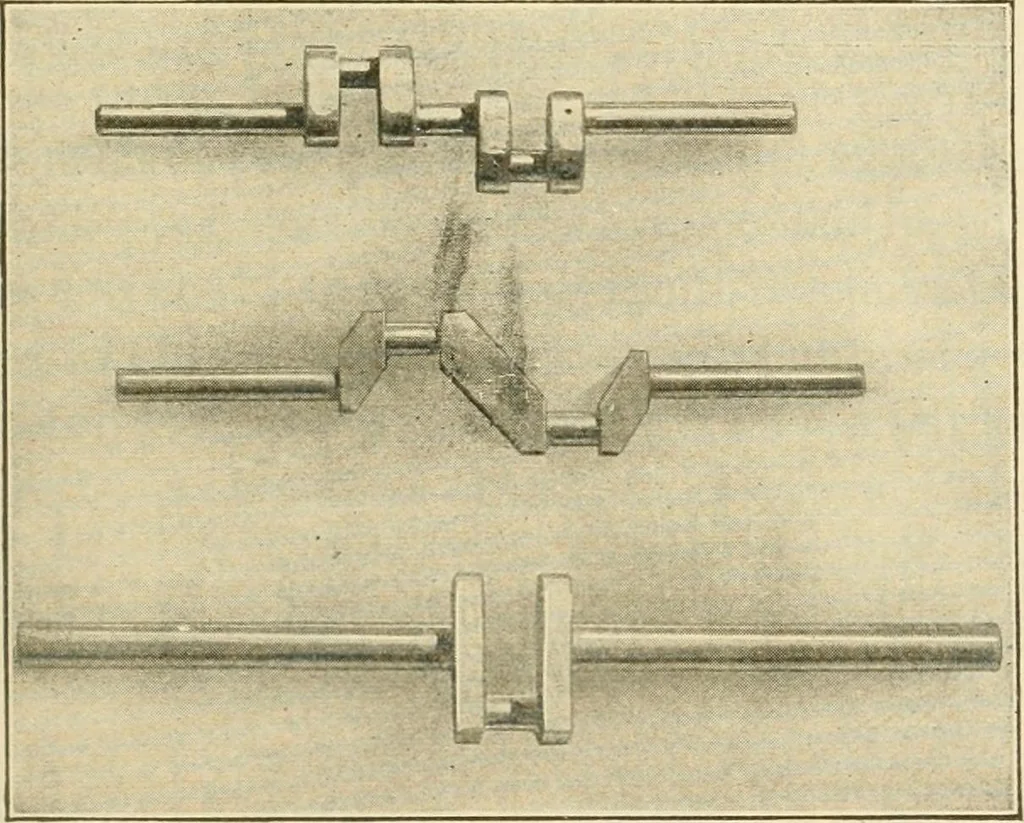

wooden dowel pins pre- Advanced Lathe Work \S> viously described will suftice to lorevent the shaft fromspringing, if they are carefully put in place and cut tothe proper length, it is best to emiiloy steel rods for thepurpose. Such rods are generally called thrust boltsand they are made… … Fig. 221—Three types of crankshafts be used to make the rods if they are to be used in turn-ing model crankshafts. For larger shafts, larger stockshould be used. Each end of the rods is threaded for adistance of at least two inches. A piece of hexagon steelstock about one inch long is then drilled…
Machine-shop practice · Handicraft
