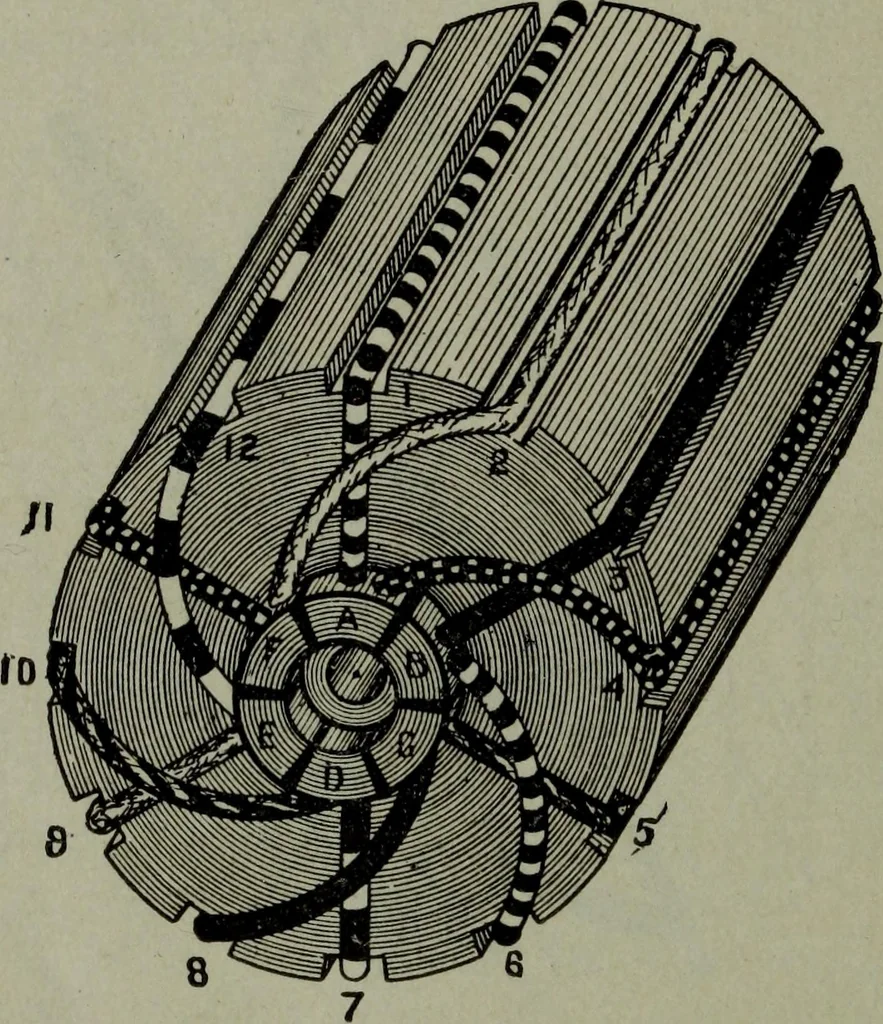

ected with commutator segment B. Ques. Describe the path of the second coil. Ans. The second coil, having the block insulation, is woundaccording to the table, in the order: 238 HAWKINS ELECTRICITY B—3—8—C that is, beginning at segment B, thence to back of drum throughslot 3, across the back to… … Fig. 263.—View of completed winding as indicated in the table fig. 259. Thus the path of thefirst coil, according to the table is A-1-6-B which means that the coil begins at segment A ofthe commutator, rises to slot 1, and proceeds through the slot to the back of the drum;thence across the back to…
