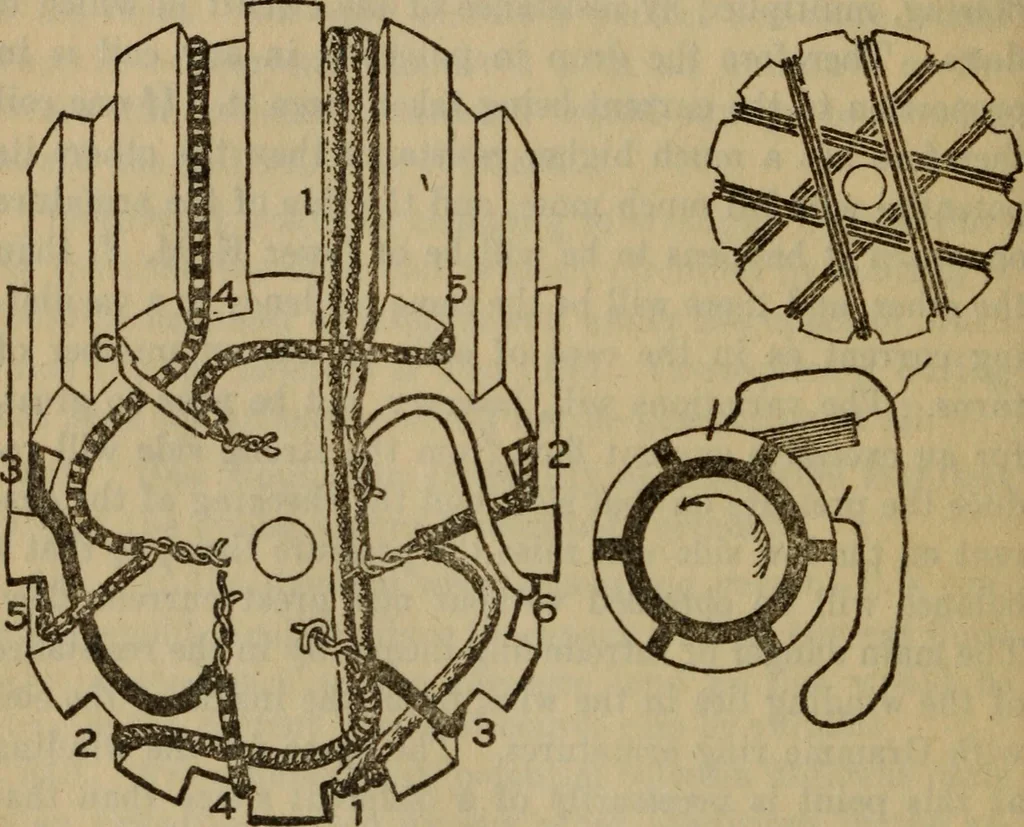

all confine ourselves to themethods used with hand winding on cylinder armatures. 852. WTiich is the most simple of these windings? 134 Steam Engineering Ans. The simplest one of these windings is that shownin Figure 534, and we shall take this one for the purpose of demonstration. It will be… … Fig. 534 Ans. It is not; in fact it is not at all desirable that thisproportion should exist, but this proportion is very con-venient for winding, as we shall see. Begin winding by selecting two of the slots locatedopposite each other, as shown in the figure, and startingat 1 wind into those slots…
