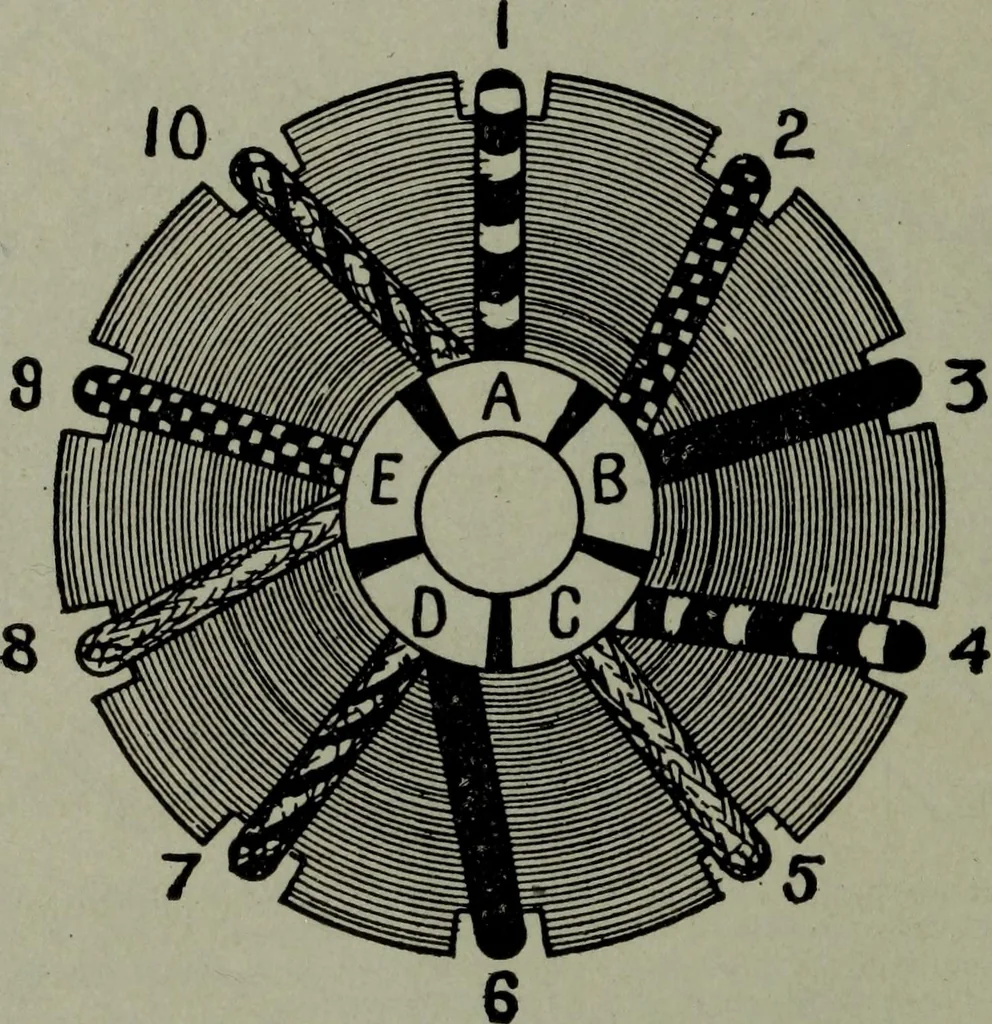

or Wave Drum Winding.—In this mode of winding,the inductors are arranged around the armature so that they donot turn back, thus describing a zigzag or wave-like path; that 242 HAWKINS ELECTRICITY is, the coil ends instead of connecting with adjacent segmentsof the commutator, are attached to… … Fig. 267.—Five coil wave winding for a four pole machine. In this winding only two brushesare used, there being only two paths through the armature. Ques. For what service are wave windings adapted? Ans. They are generally used on armatures designed tofurnish a current of high voltage and low…
