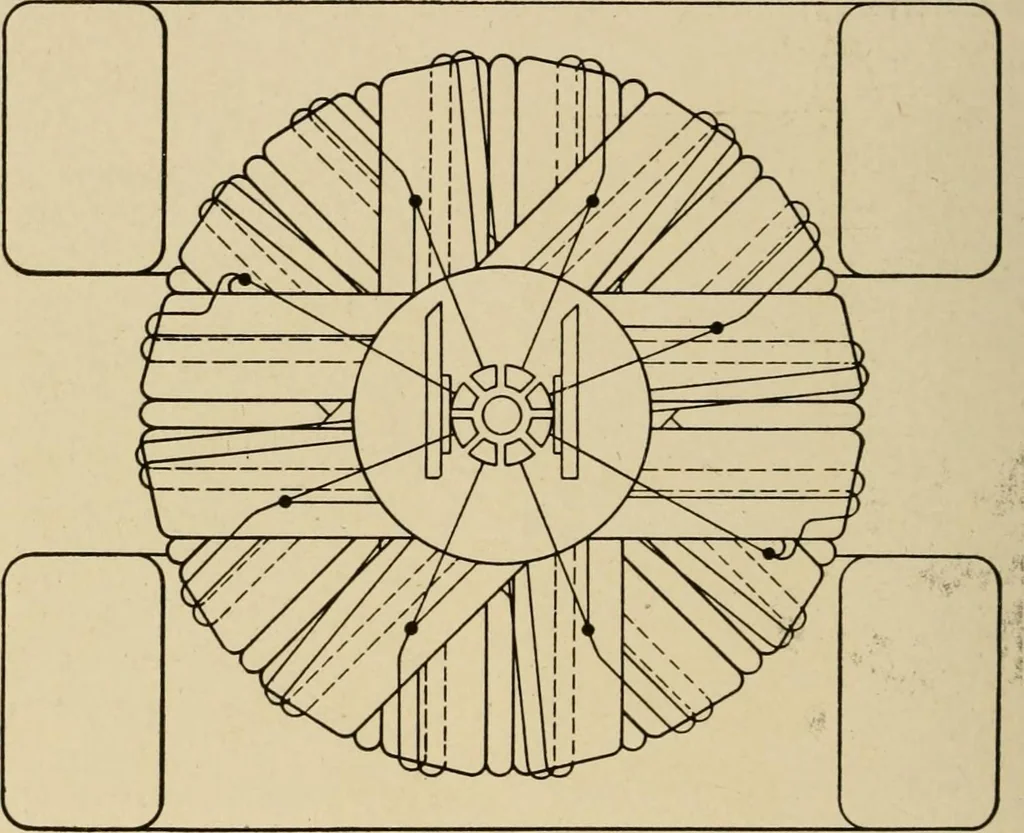

body, which is spherical in shape, is a very thinlight paper shell mounted on a hollow steel shaft. Over this shellis wound a number of coils consisting of a great many turns of finewire with taps brought out at regular intervals and permanentlysoldered to the commutator bars. As the armature… … Fig. 91. Relation Between Commutator and Armature When Brushes Are at RightAngles to the Current Coils passes from one bar to the next. The correct relation of brushesto commutator for a meter of this type, whose brushes are at rightangles to the plane of the field coils, is shown in Fig, 91. When…
