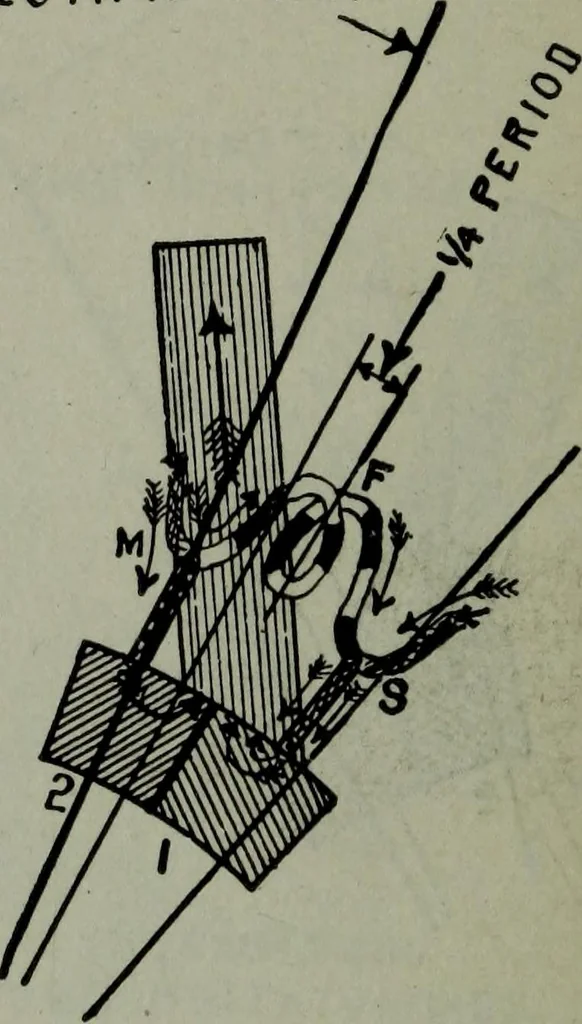

NEUTRAL PLANE COMMUTATINCPLANE … PERIOD OFCOMMUTATION Figs. 309 to 313.—How sparkless commutation is obtained by advancing the brushesbeyond the neutral plane; commutation progressively shown. Fig. 309.—Commutation begins; current flows up both sides of the armature, uniting at Sand flowing to the brush through commutator segment…
