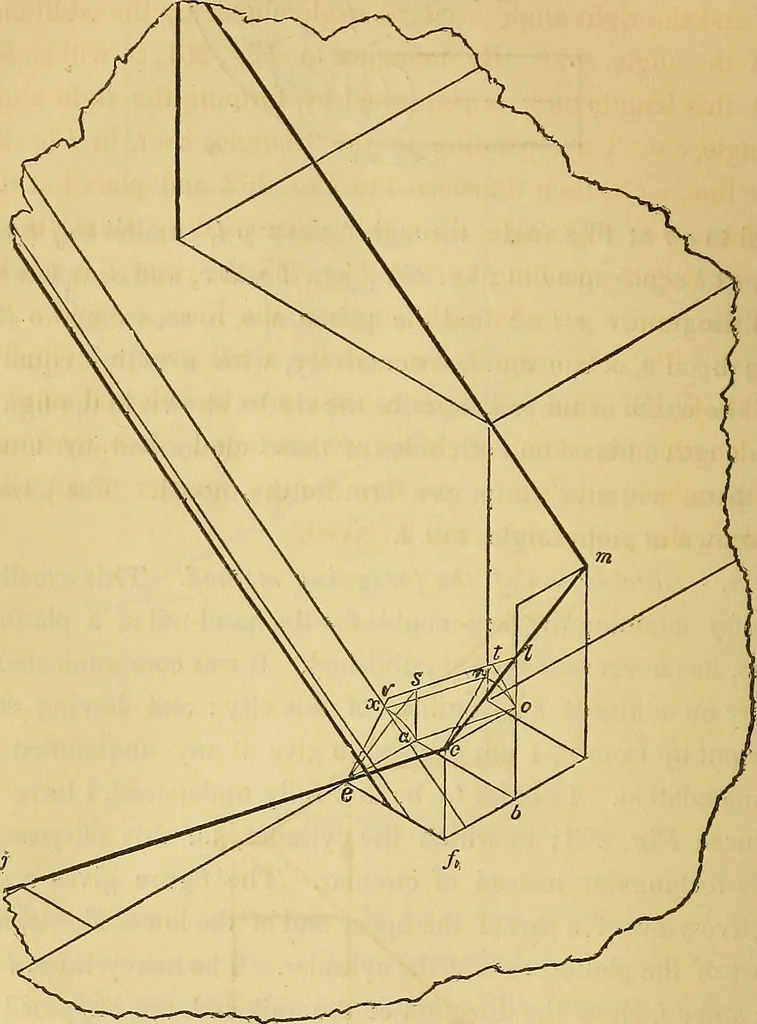

ight is the same as that of the first, which is here and is gene-rally the case, the face-mould for the lower twist will, when re-versed, do for the upper flight: that part of the rail, therefore,which passes from e to c and from c to Z, is all that will need ex-planation. Suppose, then, that the… … Fig, 263. be revolved on e c as an axis, in the manner indicated by the ares,0 n and a x, until it coincides with the plane, e r t c ;. the line, a0, will then be represented by the line, x n ; then add the paral-^lelogram, xrt n^ and the triangle, ctl, deducting the triangle, er s ;and the edges…
