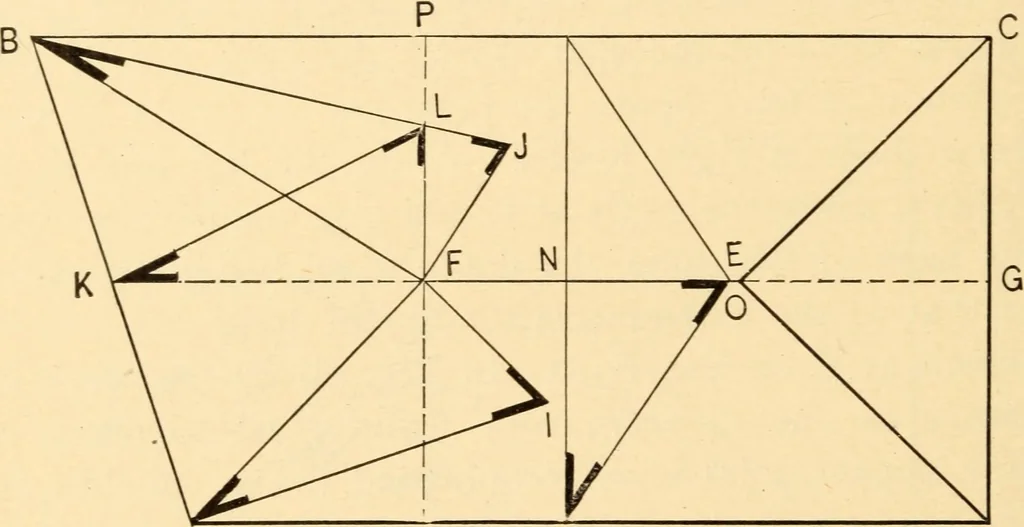

ome of themost complicated plans which frequently come up inactual practice. io4 THE BUILDERS GUIDE. HirS OX END OF BUILDING OUT OF SQUARE. A plan of a hip roof with one end out of square isshown in Fig. 70. Let A B C D represent the platesin the plan; D E C the angle and run of hips on thesquare… … A H M D Fig# 70.—Plan of Hip Roof with One End Out of Square. From F on line A F square up the rise of hip to I,which connect with A for the hip rafter. Then I isthe down and A the bottom bevels. The hip rafterson the square end of the plan will be the same lengthas A I and will have the same…
