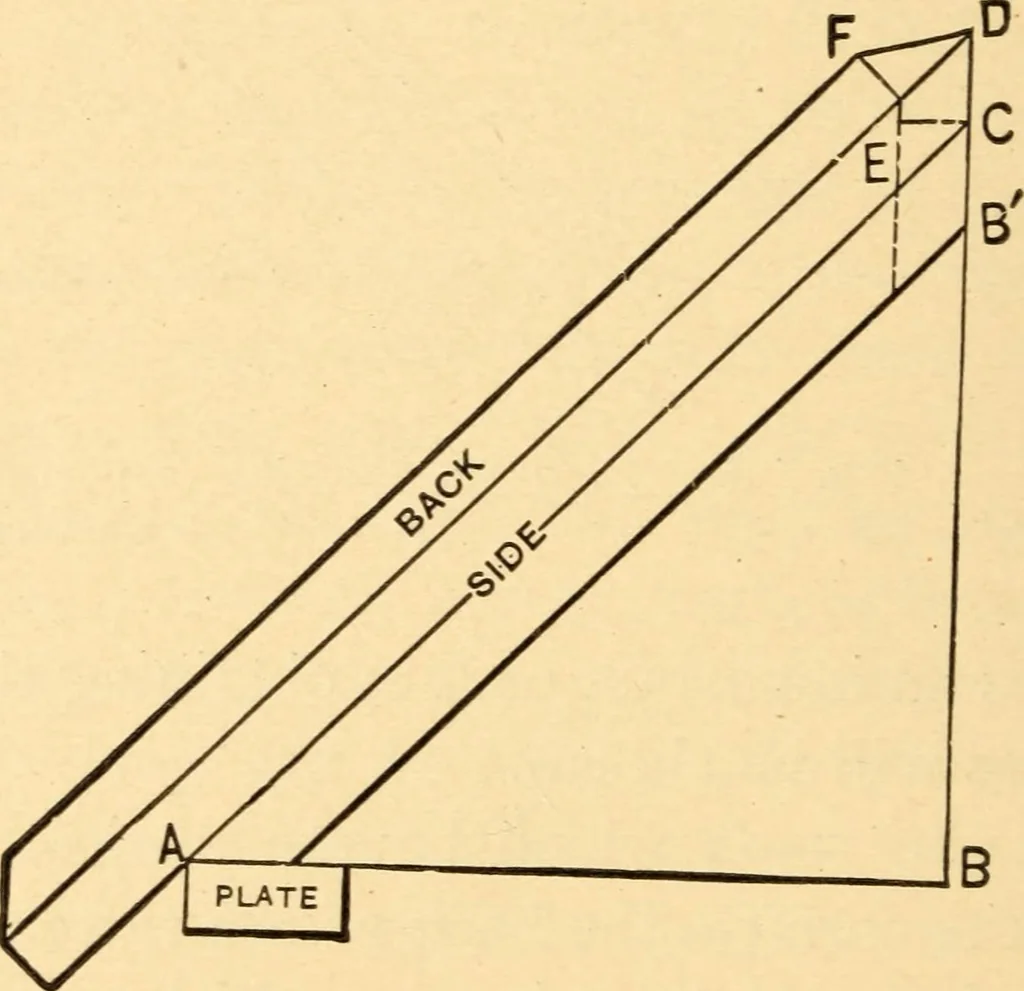

ing to Fig. 106, we can easily trace the workline and the lines forming the cut of the jack rafter.The work line isrepresented by AC, the plumb lineor down bevel byD B, and is al-ways the same asthe down bevelof the commonrafter. To findthe bevel acrossthe back of therafter draw an-other plumb… … Fig. 106.—Diagram Showing Work Line in aJack Rafter. THE BUILDERS GUIDE. 149 to which to measure on the line A C is from A to thescratch mark half way between the two plumb lines,this being the center of the rafter in thickness. Inactual practice this little point need not be considered,and for…
