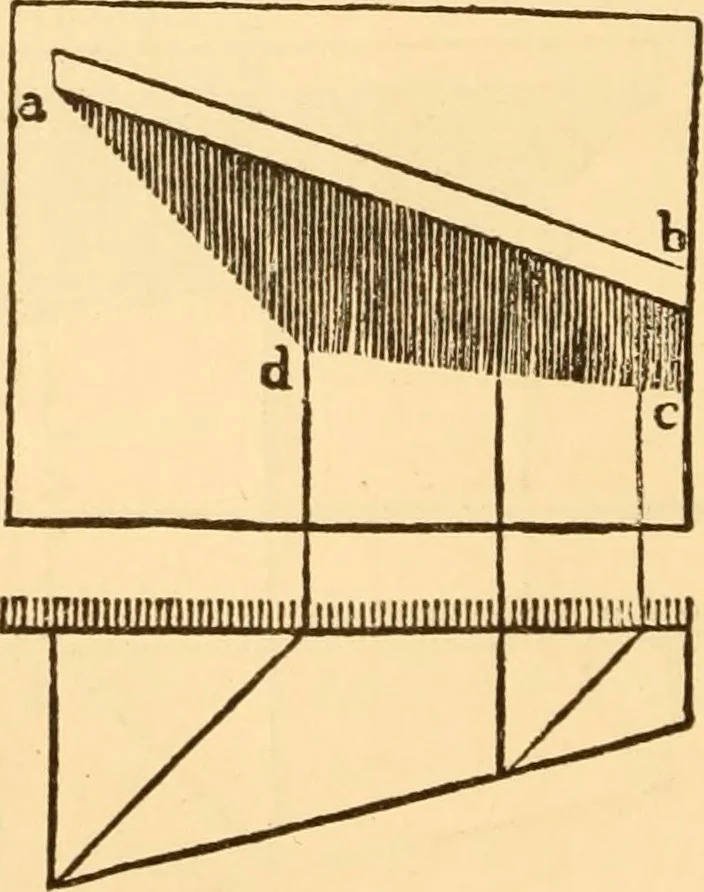

Fig. 427. from a erect the perpendicular ab\ join b and e\ then beand ^^ will define the boundary of shadow. 568.—To Find the Shadow Cast by an Inclined Shelf.— In Fig. 428 the plan and elevation of such a shelf are shown,having also one end wider than the other. Proceed as di- … FiG 428. rected for finding the shadows of Fig. 426, and find the pointsdand c; then ad and dc will be the shadow required. Ifthe shelf had been parallel in width on the plan, then theline dc would have been parallel with the shelf a b. SHADOWS OF INCLINED AND CURVED SHELVES. 601 569.—To Find tlic…
