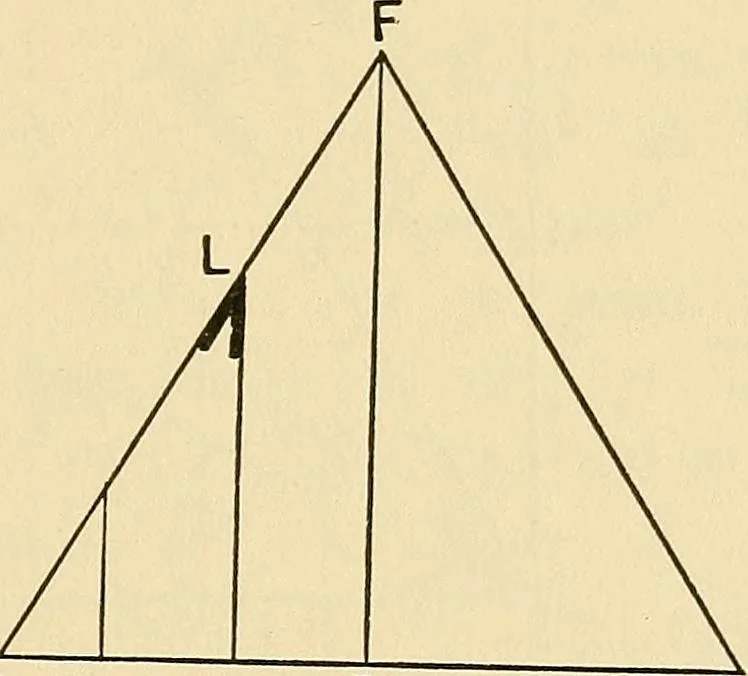

he plumb cut or downbevel will be the same as that of the common rafter onthe long run. Now everything desired has beenshown, and without the confusion of cross-lines. Bythis method all complica-tions in roof framing aremade easy. And themost difficult roofs willshow the superiority ofthis plan, as… … ABC Fig. 68.—Finding Lengths andBevels of Jack Rafters on theEnd of Building Having thelong run of the Common Rafter. may be combined toindicate the different lengths and cuts of all the raftersdirectly from the plan. This method is attended with many cross lines andis not recommended even to the…
