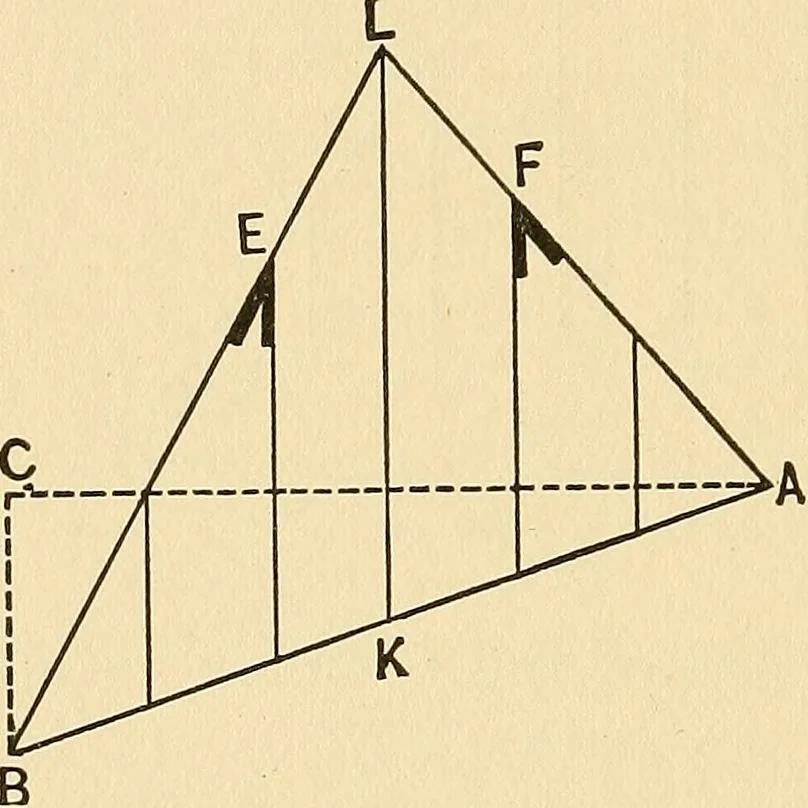

n L in Fig. 70. We haveOut of Square. ^^^ ^^ f^^^ ^^It lengths and bevels of the jackson the rear side of the long hip. Referring to Fig.73, B C represents the rear plate, B D is the squareof the hip, being the same as B P of Fig. 70; D L thelength of the common rafter, being the same as O Mof Fig.… … THE BUILDERS GUIDE. 107 yi, than on B K, Fig. y2, in order that they maymeet opposite on the hip B L. Draw the jacks per-pedicular from B D, Fig. 73, joining the hip B L,which will give their lengths. A bevel set in the angleat E where they join the hip will give the bevel acrossthe back. The down…
