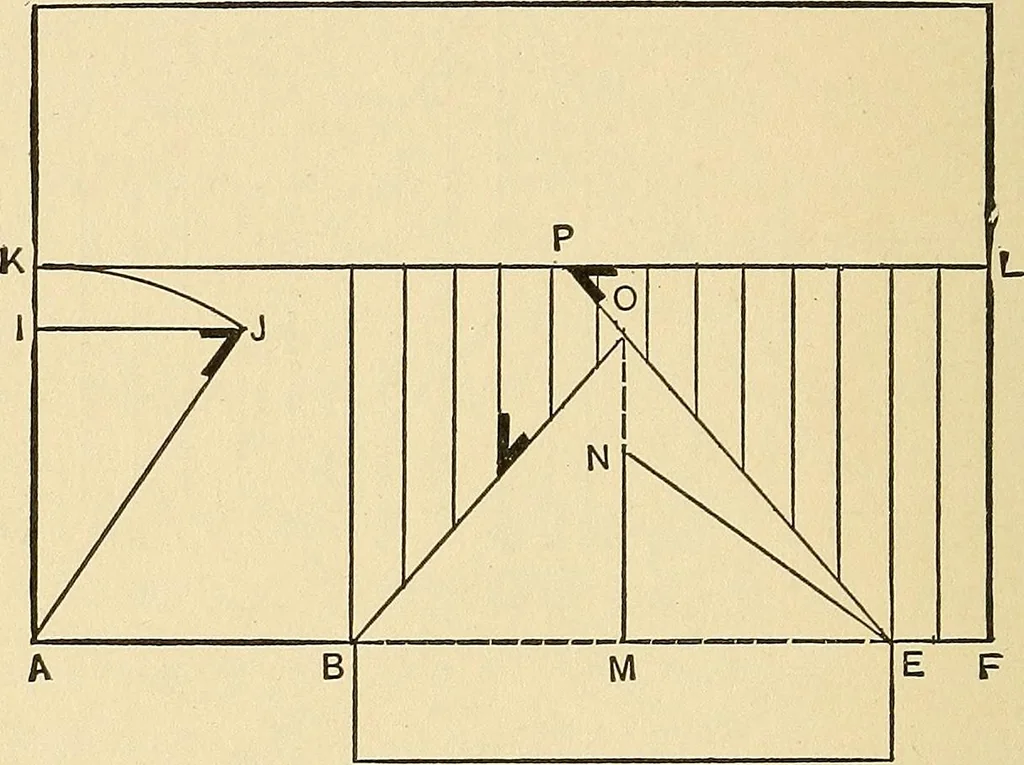

e rear, the right gable will be to our left andthe left to our right, as shown in Fig. 83. THE BUILDERS GUIDE. AN IMPORTANT POINT IN ROOF FRAMING. For the purpose of illustrating an important pointin roof framing we will refer to Fig. 84, which repre-sents the plan of a roof having three gables of… … C D Fig. 84,—Roof Having Three Gables of the Same Pitch, the FrontGable Being Narrower than the Other Two. A and J for the length of the common rafter on themain part of the roof. Swing the common rafteraround to a perpendicular position, as shown by A Kon the left gable. Set off the length of the…
