Hicks' Builders' guide, comprising an easy, practical system of estimating material and labor for carpenters, contractors and builders (1907)
Hicks, I. P. (Isaac Perry), b. 1856 · New York, David Williams company · leaf 129

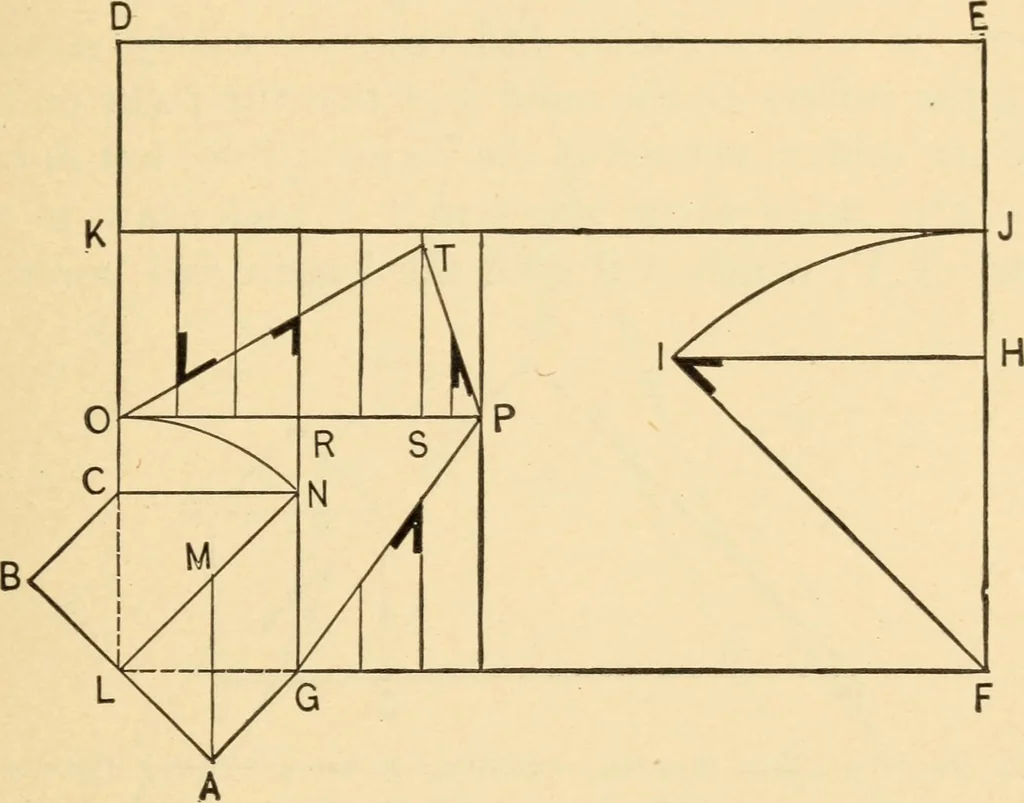

Fig. 88.—Diagram Illustrating the Methodof Obtaining the Lengths and Cuts ofall the Rafters in any Regular Polygon. its run represented by L C. THE BUILDERS GUIDE. I27 length of main common rafter up to the point wherethe left valley starts. Transfer L N to L O, whichis the starting point of the… … Fig. 89.—Framing Gables Which Join Diagonally. rise of the common rafter on the corner gable to S,which is the same as L M. From S square up the length of the common rafterto T, which is the same distance as A M. ConnectT with O for the length and position of the left valley.Connect T with P for…
Carpentry · Building
