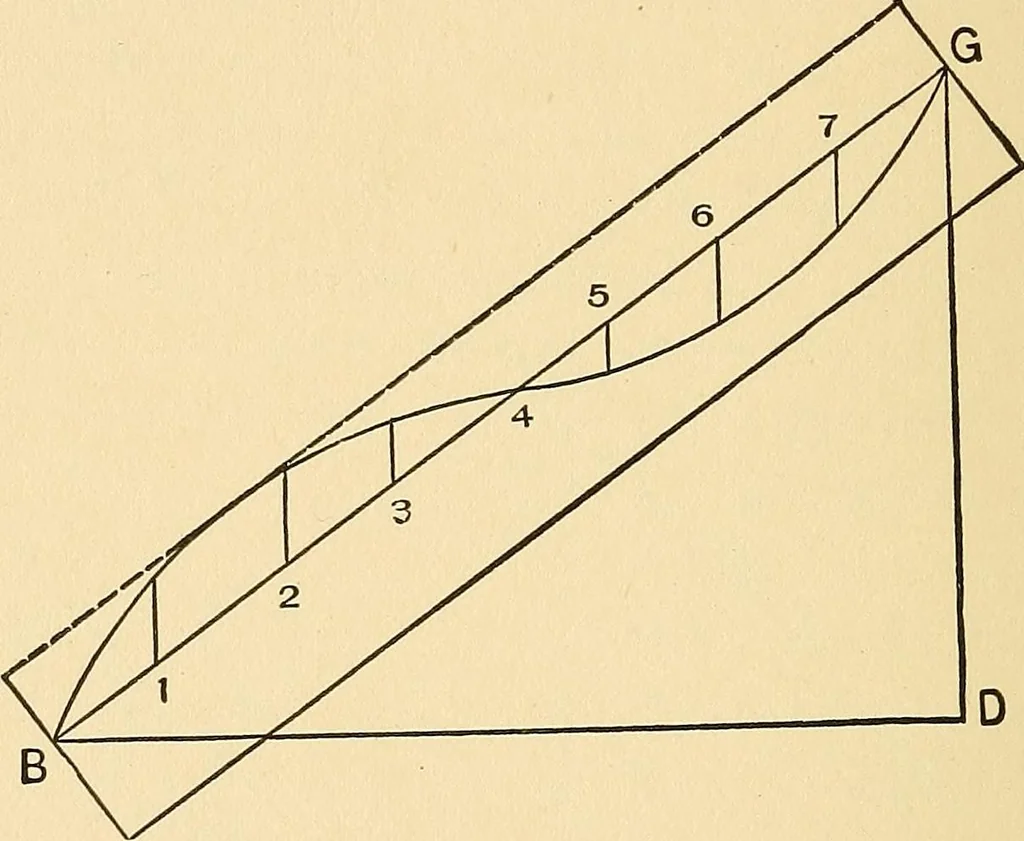

134 THE builders GUIDE. The lengths and bevels of the jacks for the dif-ferent pitches may be found as shown in Figs. 62, 63or 64. Again, it is evident that a jack rafter must bethe same shape as the common rafter on the sameside of roof from the bottom, or plate, up to thepoint where it joins the… … Fis- 96.—Developing tlie Shape of the Hips. common rafter, D E the rise and A E the length andwork line. To find the length of jack, set off the runof jack A B and square up the rise B C to the workline of the common rafter; then A C is the length ofjack on the work line. This method is very…
