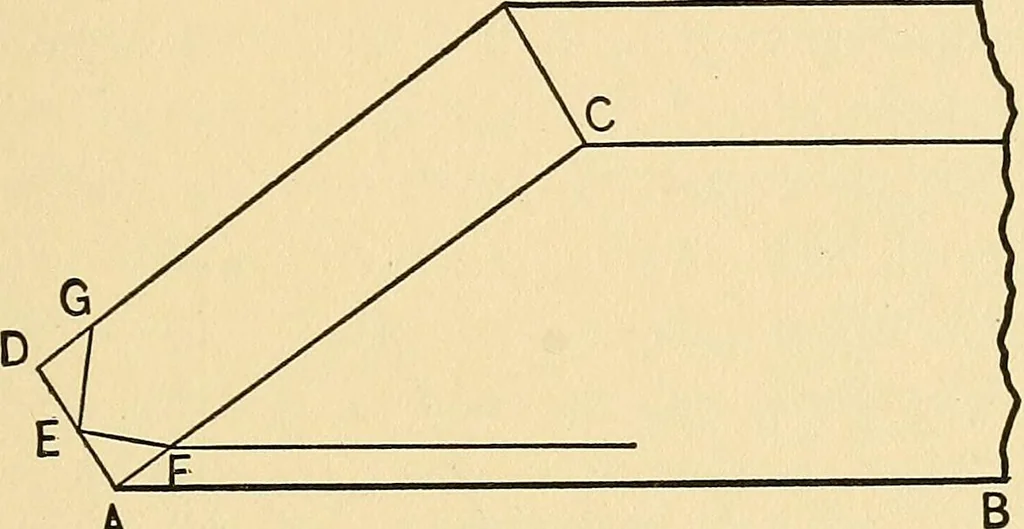

h roofs.% inch in 1 inch for one-third pitch roofs.1/4 inch in 1 inch for one-quarter pitch roofs. As the above table may not be considered a scien-tific way of doing the work, Fig. 6i is presented.Draw a horizontal line, A B, and from A draw an-other at an angle representing the bottom cut of… … A Fig. 61.—Backing a Hip Rafter. backing are G E F. The other lines are merely toshow that the piece is off the bottom end of the hiprafter itself. HIP ROOFS OF UNEQUAL PITCHES. In Fig. 62 is shown the manner in which the methodrepresented in Fig. 58 may be varied to meet the re-quirements of roofs…
