High frequency apparatus, design, construction and practical application; a practical treatise for electrical engineers, electricans, physicians, students and experimenters (1920)
Curtis, Thomas Stanley · New York, Norman W. Henley publishing company · leaf 250

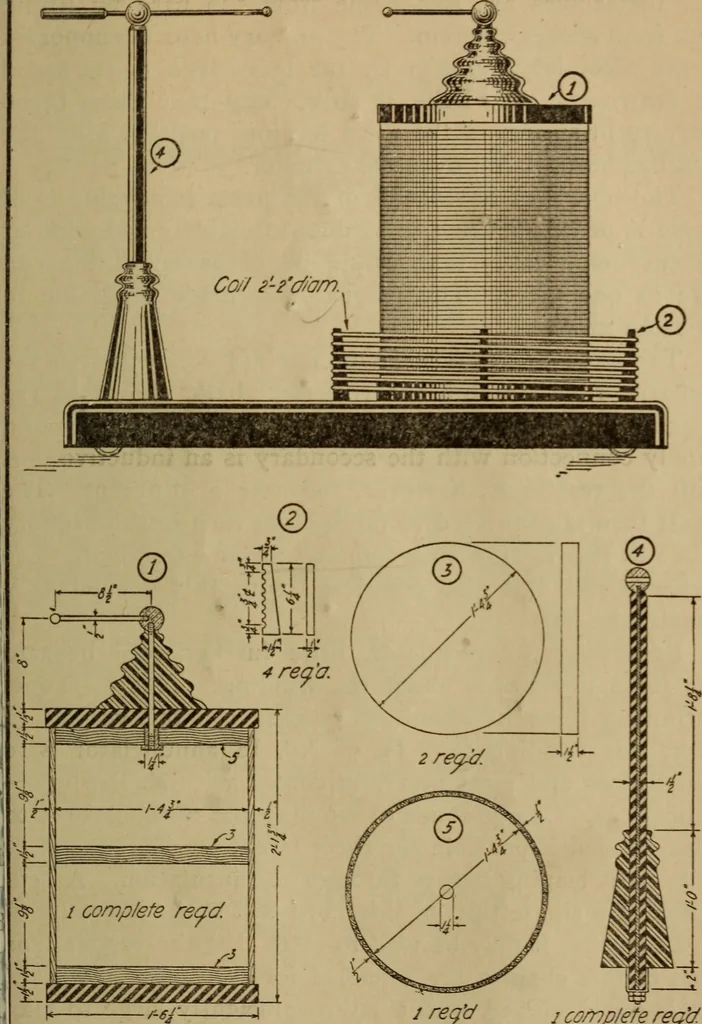

onjthe reel, but the task is scarcely one within the provinceof the amateur. The Tesla coil is mounted upon a base equipped withcasters in order that it may be moved quickly and easily.The secondary is supported by four rods of wood whichare mounted in wooden bases in imitation of high… … 1 reqd j ccmp/ete re(^<:f. Fig. 137.—The Oudiii resonator complete and in detail 1 I 246 HIGH FREQUENCY APPARATUS rods themselves are removable from the base by liftinthem from sockets therein. The primary helix is supporteron the secondary cylinder by the three legs as shown inthe drawings. The…
Electric apparatus and appliances
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
