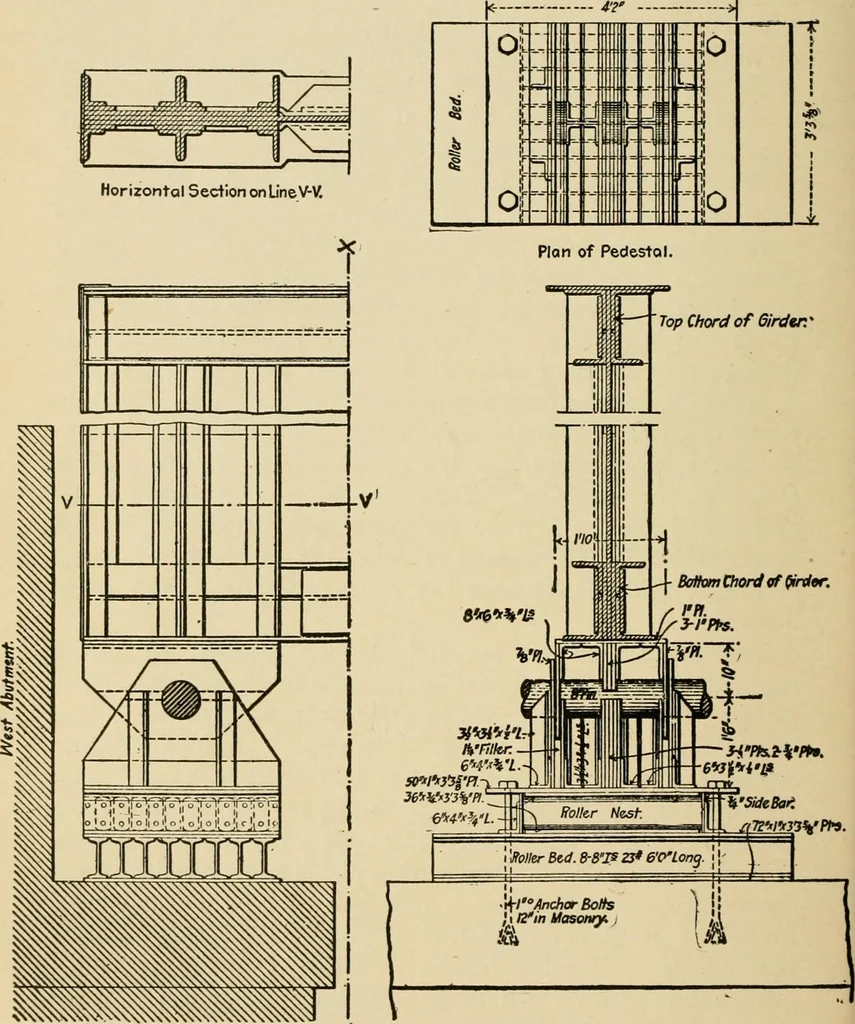

hesbeyond them and receives two anchor bolts on each side. Maiden Lane.—The Ii6|-ft. plate girders of the MaidenLane bridge of the New York Central & Hudson River Rail-road, at Albany, have bearings on 8-in. end pins which engageupper and lower riveted shoes. 174 BRIDGE CONSTRUCTION The upper… … Eleval-ion. Secstionol Eievoilon on Line XX.. Clyde Bridge, N. Y. C. & H. R. R. R. the detail. See page 174. These pin plates are connectedtogether by a vertical transverse diaphragm plate and four short6 X 6-in. vertical angles, and all are connected to the bearing PIN BEARINGS IN RIVETED…
