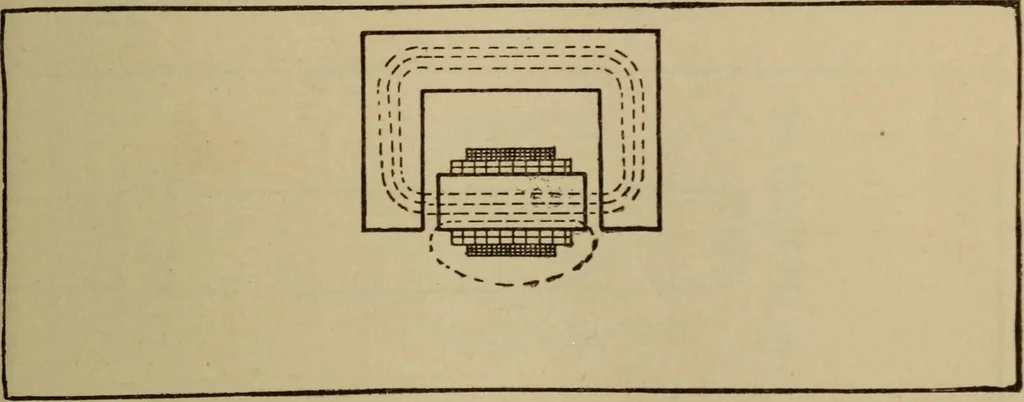

nsformer is known as an open core instru-ment because the magnetic Unes of force set up in thestraight iron core must reach around through the air asshown in Fig. 3 to complete the magnetic circuit. A modi-fication is shown in Fig. 4 which illustrates a method bymeans of which the windings of the… … Fig. 4.—Showing principle of closed core transformer. Lines of force p:.ssthrough the closed magnetic circuit instead of through the air as in Fig. 3 There are many modifications of the closed core trans-former, all of which have merits peculiar to the uses towhich they are put. For lighting and…
