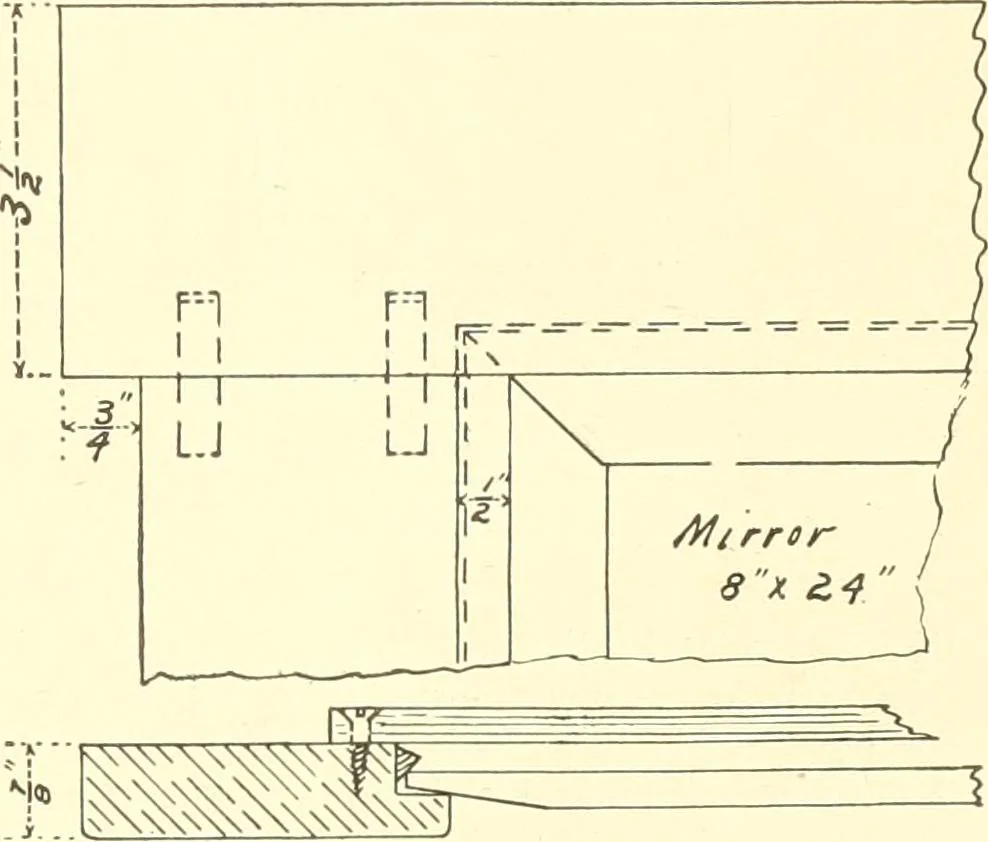

Fig. 250 around in rabbet (the rabbet is the part cut from theinside edge of the frame, to take the mirror—2 in.x § in.).If the top and bottom pieces of the frame extend f in.beyond the end pieces, the stock bill reads: 2 P—31|x3ixJ—top and bottom pieces.2 P—7Jx3JxJ—ends.1 P—92x2.5JxJ or |—glass… … U -j^l- , Fig. 251To construct—Plane inside and outside edges ofpieces perfectly square and smooth. Joint the ends of the end pieces square. Mark offthe position of the end pieces on the top and bottompieces of the frame. 138 CABINET MAKING Number the corners of the frame, 1,1; 2, 2, etc. Lay out…
