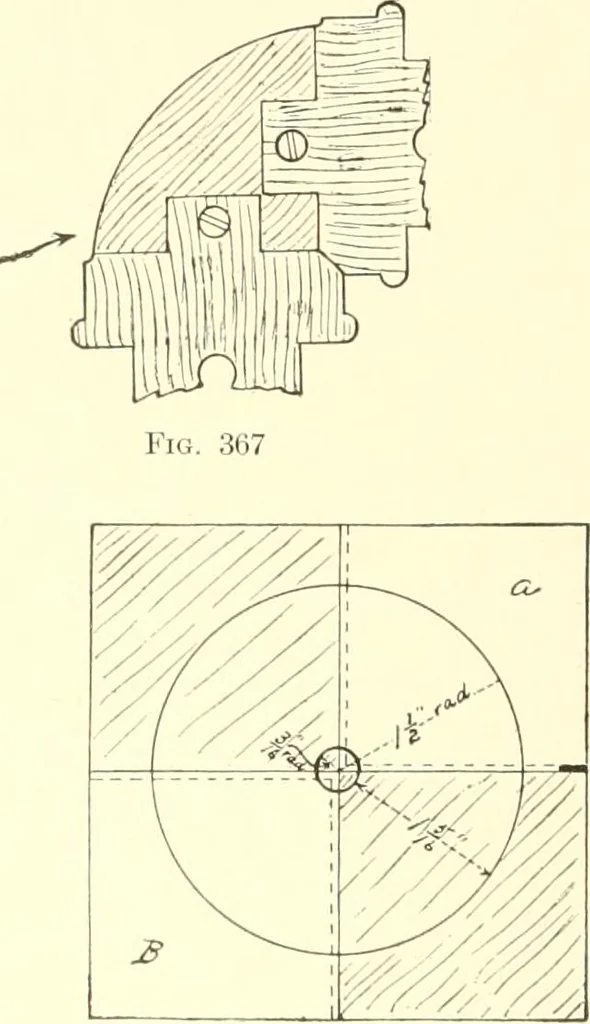

200 PATTERN MAKING turns to the dotted lines, clamp them together care-fully, two and two, and bore for the f in. dowel in theends. These are then glued in place, and furtherstrengthened by a small wood screw (Fig. 367). The core-box is also turned from lumljer glued up so 1 ji i )^ - … Fu;. :3(i,S that the grain runs diagonally across the block (Fig.368). As the turns of the core-box must be a perfect quartercircle, and as the parts A and B are not needed to makethe core-bo.x, the saw kerf is taken out of these parts. After the straight parts of the box are worked out,and fitted…
