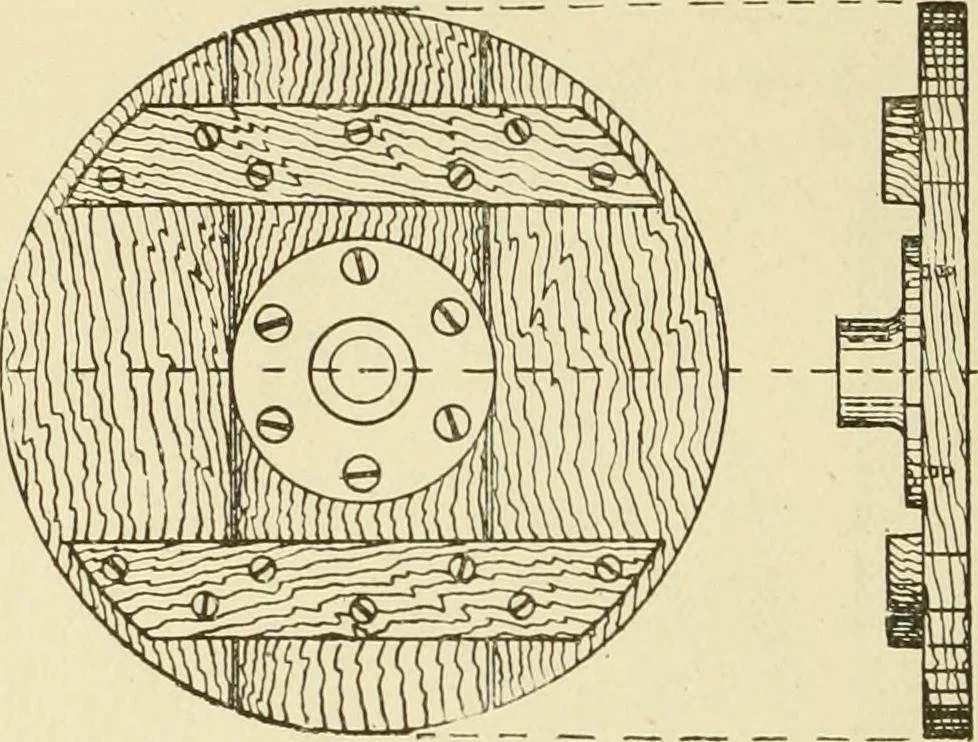

ith Blocks. Fig. 96, upon the plate, and recessing these to receivethe face and edges of the ring already turned, so thatwhen re-chucked, the opposite face and adjacent edges,if need be, may be turned. The intermediate face chucks are made of soft wood,as yellow pine, or red deal. If small, they… … Fig. 97. Face Plate with Battens. upwards, they are better if framed together in the wayshown in Fig. 98. A cross of stout wood is halved to-gether, and segments are screwed to this to form theface of the chuck. It is with a view to preserve theselarge plates as long as possible for service that…
