High school manual training course in woodwork, including cost of equipment and supplies and studies on trees and wood (1905)
Ritchey, Samuel Edward, 1866- · New York, American Book Company · leaf 53

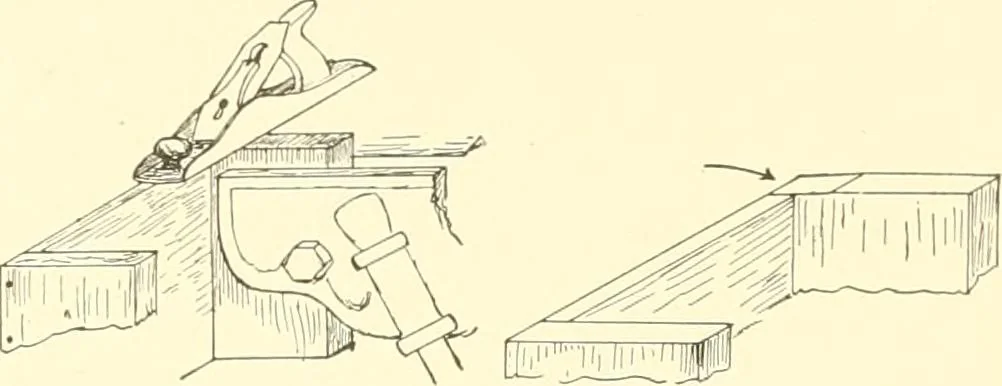

ring surface—and, lastly, the whole box clean andwhite. To plane edges of two or more pieces when nailed orglued together. Having nailed the ends of your box to the bottom, theedges must be planed slightly to receive the sides.Clamp the partly nailed box in vise as shown. Remem-bering that the… … Fig. 66 Fig 67 planing the end of the box end out of true, as the edge of the bit cuts nothing while the center is cutting off a whole shaving. Our box end would be slanted off as shown in Fig. 67. The only way to plane edges of this kind (your glove-box later on) is to lay the back of the plane on…
Woodwork (Manual training) · Cabinetwork
