Hints to young architects, comprising advice to those who, while yet at school, are destined to the profession, to such as, having passed their pupilage, are about to travel and to those who, having completed their education, are about to practise, together with a model specification involving a great variety of instructive and suggestive matter (1887)

Wightwick, George · London, Lockwood · leaf 26

An illustration from Hints to young architects, comprising advice to those who, while yet at school, are destined to the profession, to such as, having passed their pupilage, are about to travel and to those who, having completed their education, are about to practise, together with a model specification involving a great variety of instructive and suggestive matter, 1887, leaf 26

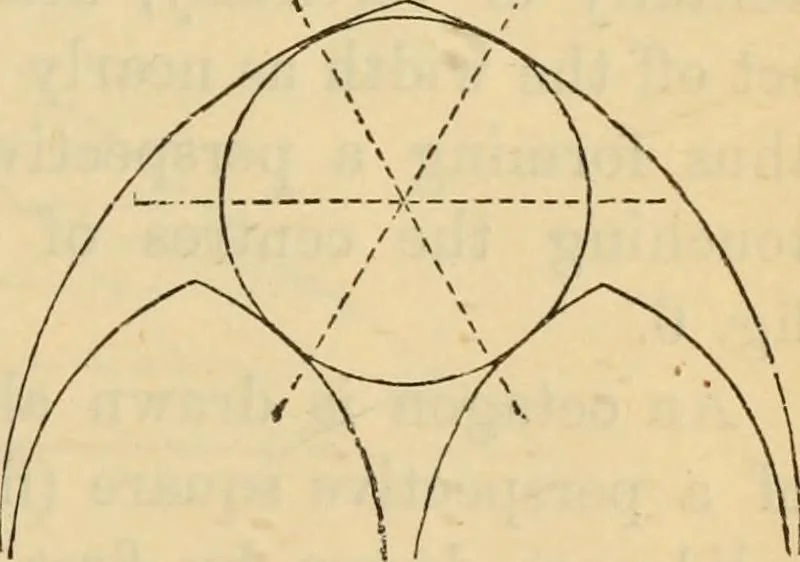

Fig. 1. Fig. 2. bisected by two other lines, and radii marked as before(see fig. 1). The hand can now trace the curve. Acircumscribing square isanother good plan, as infig. 2. When a circle hasto touch a certain bound-ary, as in the circle of atraceried window, unitethe points of contact by… … 14 HINTS TO YOUNG ARCHITECTS. octagon, draw four intersecting diameters as for acircle, and mark equidistant points from centre. Then draw at rightangles through eachpoint or extremitythe respective side;another plan is to.J form a circumscrib-ing square, cutting Fig. 4.
