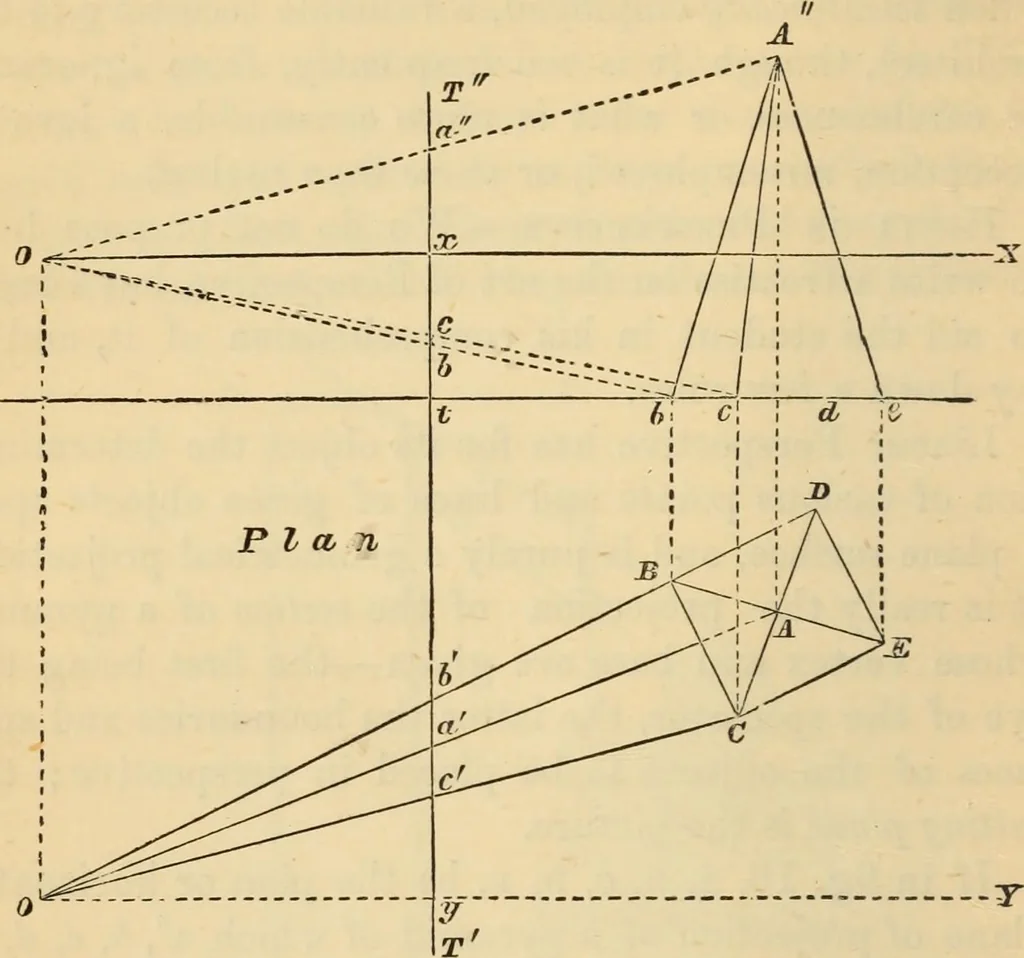

of projection. Let them be chosento pass through the eye, or as representing two planesdrawn through the eye, one horizontal and the othervertical, and both perpendicular to the picture as o x,o Y. These lines will cut the picture planes in x and yrespectively. Then since these axes are determined… … pyramid; and verti-cally also, since x agives the distancefrom the axis x x onthe picture. Thusthe distances from therespective axes x xand Y Y are deter-mined and the pointd fixed. Any otherpoint may be deter-mined in the same manner, and the pyramid completed.Theory of Lines and Planes.—The…
