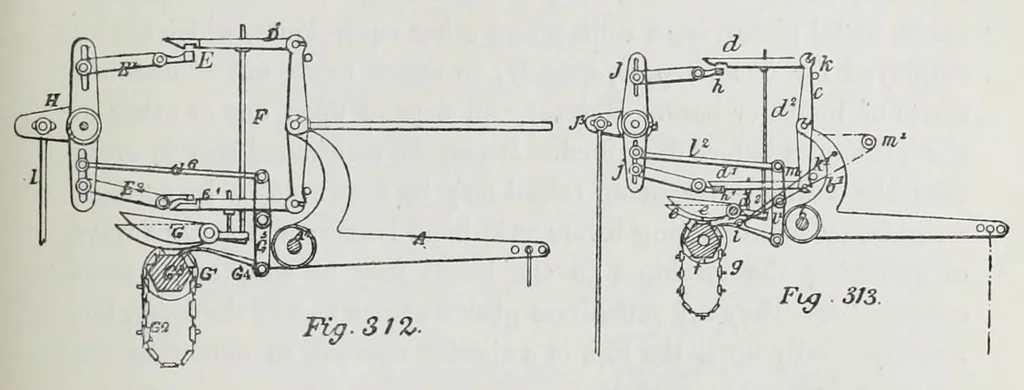

An illustration from The history and principles of weaving by hand and by power : reprinted, with considerable additions, from "Engineering," with a chapter on lace-making machinery, reprinted from the "Journal of the Society of Arts", 1878, leaf 301
CQUARD MA CHINES AND A PPA RATUS. 283 grooves formed in tlie frame of the machine and operated by rods E" and E^, connected by a three-armed lever H, and hinged to the frame. An oscillatory motion is given thereto by a rod I, connected to a crank fixed on the lower shaft of the loom. It must be… … cylinder G^, carrying the peg lags is turned by a pawl or catch G*, a lever G^, which is hinged to the frame, and a rod G^, connected to the lever S. By this aparatus any of the healds can be arranged to be lifted and pulled down, when liberated, by springs in the usual way, or by the use of an…
