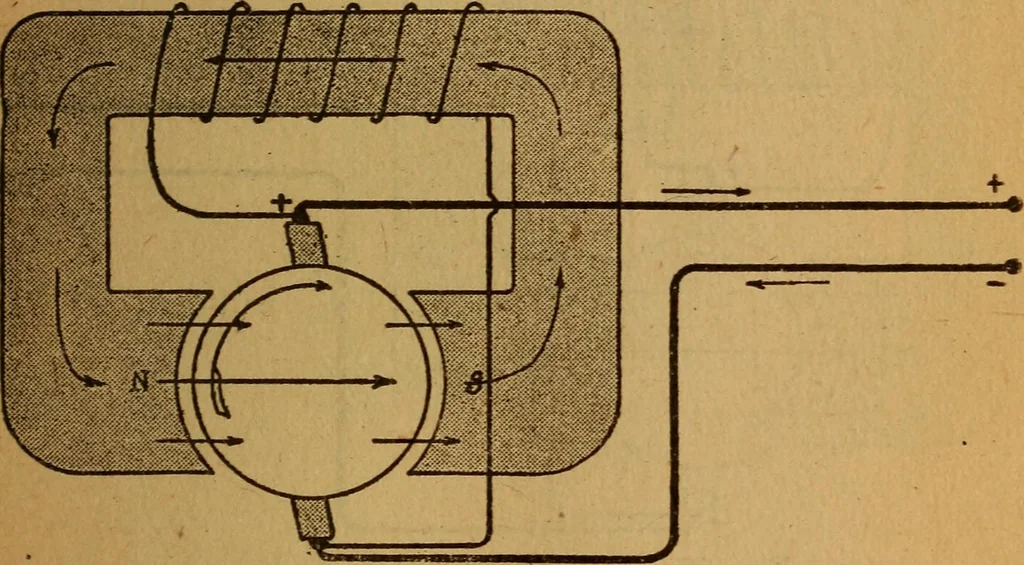

lectric Generators and Motors. 101 Operation of Shunt Wound Generator. In Fig. 65, the current in the field winding atany time is equal to the pressure between thebrushes divided by the resistance of the windingand is independent of the current the generatormay be supplying to circuit connected to… … Fig. 65. A shunt field winding. This produces a current in the field windings,which in turn increases the strength of the mag-netic field. This in turn increases the inducedpressure, which increases the field current, etc.This operation continues until the magnetic con-dition of the iron is such…
