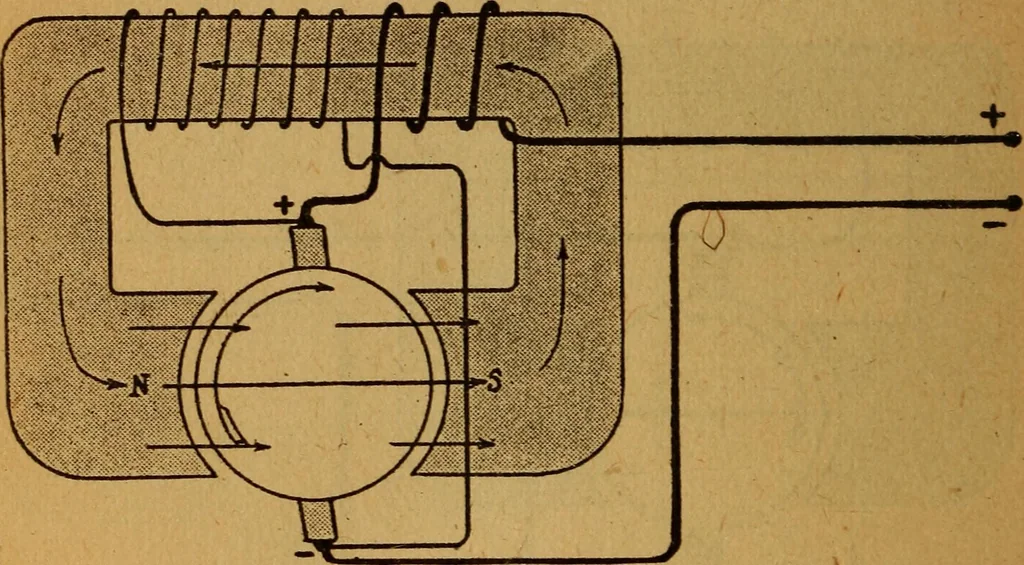

nt generatorit is not necessary to have the terminals con-nected together in order that the electrical pres- 102 Home-Farm Power and Lighting. sure induced in the armature increases. In fact,it is best to have the terminals entirely discon-nected from all circuits. Operation of the Compound… … Fig. 66. A compound field winding. fields are in opposite directions, it is called a dif-ferential compound generator. These field wind-ings usually control the current supplied to thebattery and service lines. Brushes and Commutator. The component parts of a generator are illus-trated in Fig. 67,…
