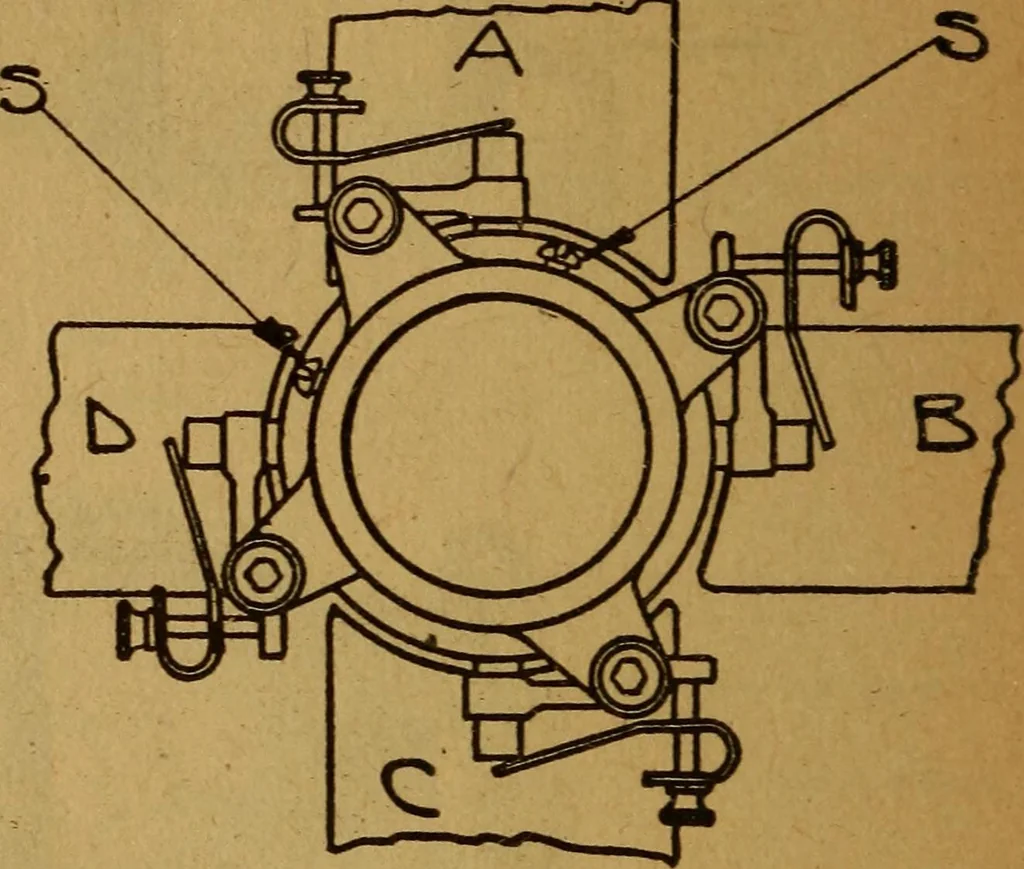

parts of a generator. 104 Home-Farm Power and Lighting. These brushes are approximately on a line with the fields, or perhaps have a slight lead, while for a motor they should be located a little behind the center of the fields. The brushes which take off the current are generally made of carbon or… … Fig. 68. Arrangement of brushes oncommutator. Cooling of Generator. Owing to the heavy loads carried by the gen-erator, some provision must be made for cooling,so as to prevent undue heating. This is usuallyaccomplished by^ ventilation. The engine fly-wheel is provided with fan blades (described…
