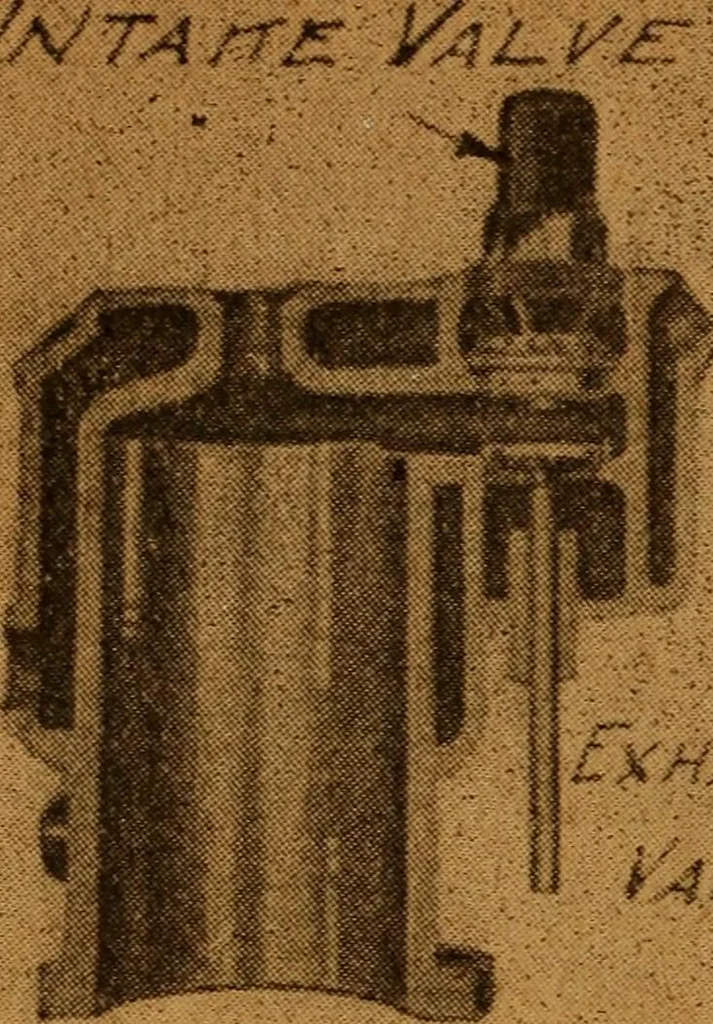

r and otherunits it may be called upon to drive. This con-version of reciprocating motion into rotary mo-tion will be described later. The Cylinder. The cylinders are usually gray iron castings,provided with water jackets or cooling fins, andhave an open and a closed end, as shown inFig. 5. The… … t4*Li--r£~, Fig. 5. Sectional viewof Cylinder. tion chamber andhouses the valves,which are insertedthrough smallopenings in thehead. The crank-case is the mainhousing for allparts and has thecylinder bolted toit. Cylinder con-struction, of course,varies according tothe location ofthe valves, while…
