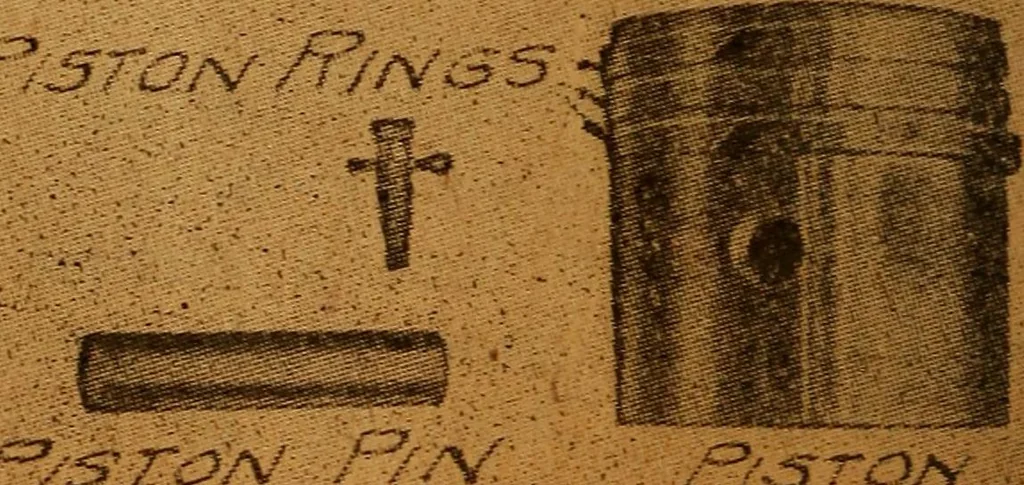

cylinder. At apoint approximately its center, bosses are formedon the inner walls on opposite sides which re-ceive the piston pin, which acts as a hinge forthe upper end of the connecting rod. Above thispiston pin, three or four grooves are formedwhich receive the piston rings. These pistons(Fig.… … Fig. 6. Piston, piston rings and piston pin.I Engine Construction.i The Crankshaft. 15 This is a horizontal steel shaft, carried in bear-ings inside of a crankcase, and is provided with anumber of offsets corresponding to the numberof cylinders. These offsets are termed crank-
