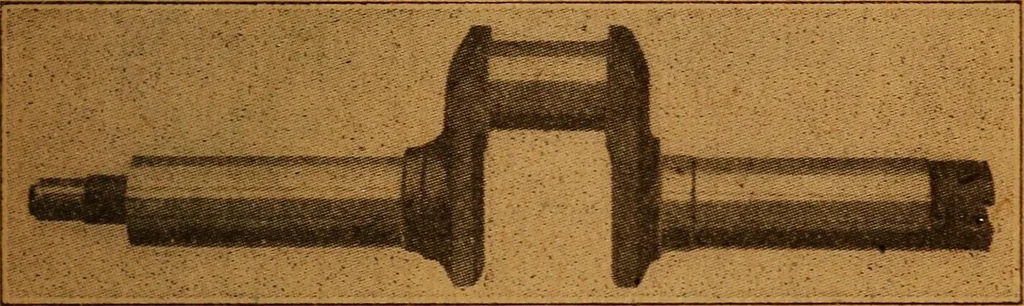

Fig. 6. Piston, piston rings and piston pin.I Engine Construction.i The Crankshaft. 15 This is a horizontal steel shaft, carried in bear-ings inside of a crankcase, and is provided with anumber of offsets corresponding to the numberof cylinders. These offsets are termed crank- … Fig. 7. Crankshaft for a single-cylinder engine. pins and carry the large ends of the connectingrods. It also carries a fly-wheel, the functionof which will be explained later. Fig. 7 illus-trates a single-cylinder crankshaft, while Fig.8 illustrates a four-cylinder crankshaft andpiston assembly.…
