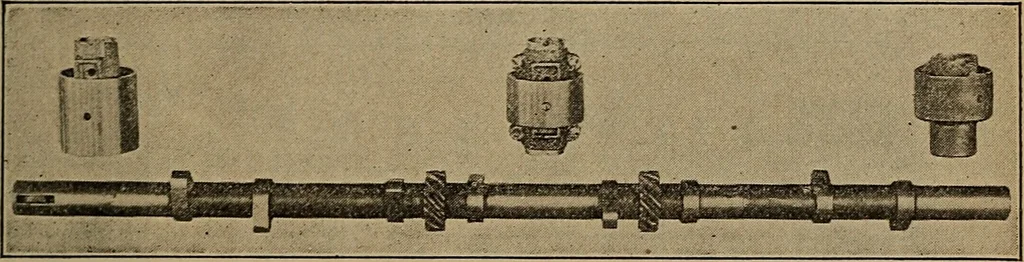

shaftdesign, which is properly a part of the valve system andwhich has been considered in connection with the otherelements which have to do directly with cylinder construc-tion to some extent. Cam-shafts are usually simple mem-bers carried at the base of the cylinder in the enginecase of Vee type… … Fig. 133.—Typical Cam-Shaft, with Valve Lifting Cams and Gears toOperate Auxiliary Devices Forged Integrally. that in which the cams are separate members, keyed andpinned to the shaft, and the other where the cams areformed integral, the latter being the most suitable forairplane engine…
