Home-farm power and lighting, a book of helpful instruction on the installation (1920)
Cincinnati, American automobile digest · leaf 50

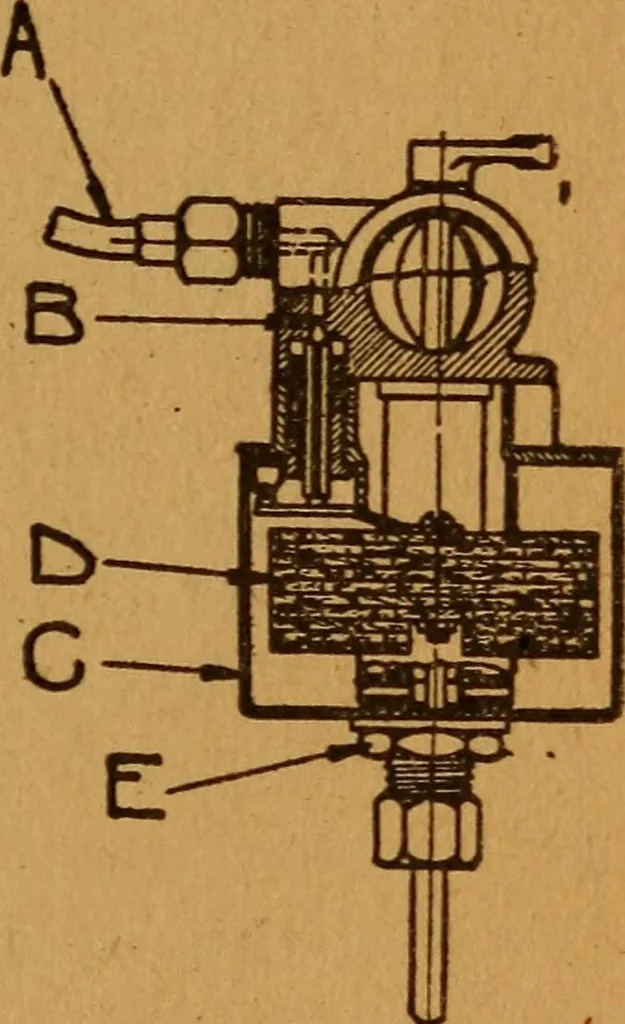

Fig. 26. Conventional type of carburetor. As the piston of the engine starts down onthe suction stroke, it draws in a large volumeof air into the intake passage (H). This airpasses down and around the outside of the tube(/) and up inside of this tube. As it rushespast the small holes (K) connecting…
Electricity in agriculture · Electric lighting · Internal combustion engines
