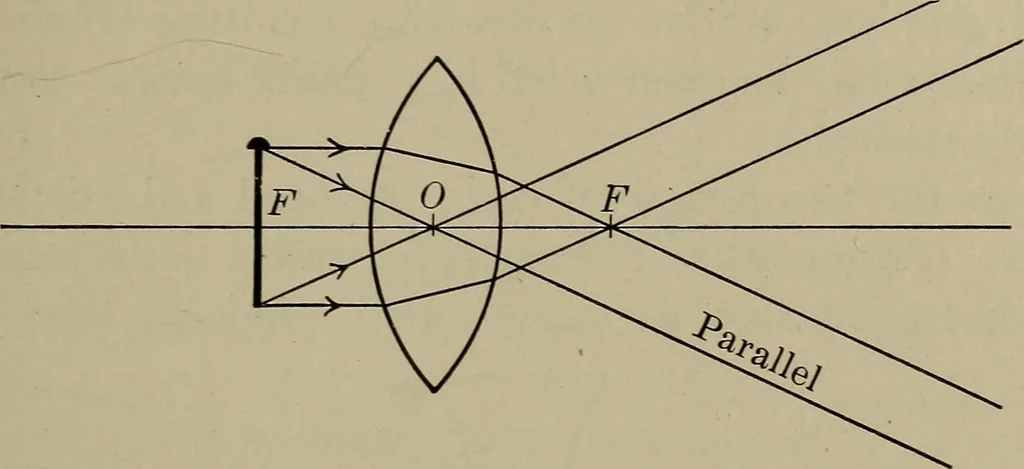

Object Figure 99. — Construction of Image when Object is betweenF and 2 F. IMAGE THROUGH A CONVERGING LENS 115 IV. The object at F. Construct as before. (Figure 100.) The rays after passingthrough the lens are parallel, and so never meet. There-fore there is no image. … Figure 100. — Construction of Image when Object is at F. V. The object between F and the lens. The construction is the same as before, except that therays after passing through the mirror diverge, and so have
