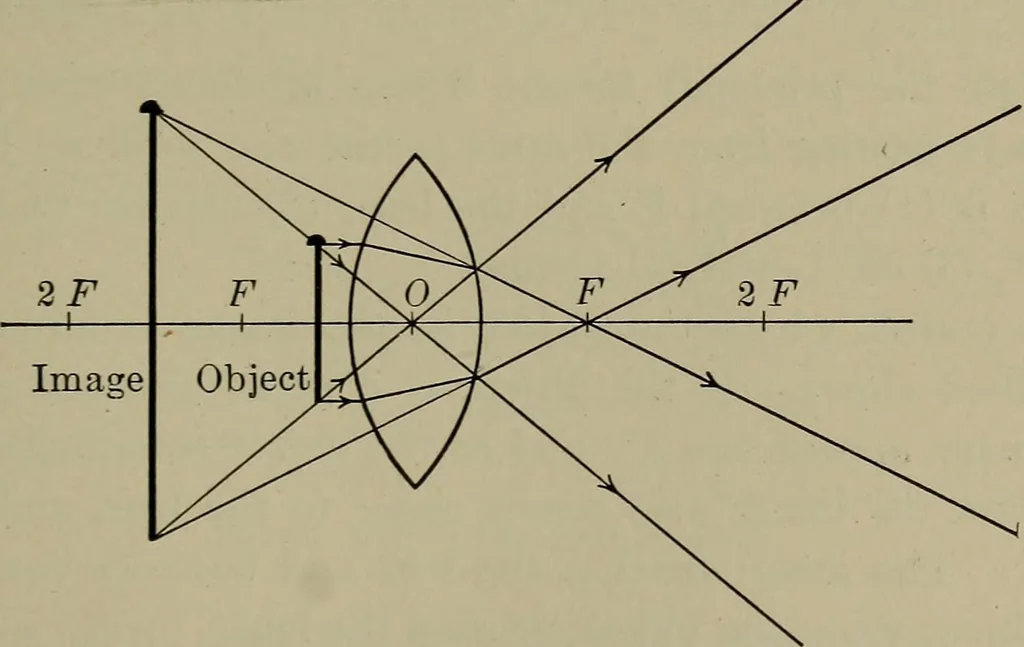

Figure 100. — Construction of Image when Object is at F. V. The object between F and the lens. The construction is the same as before, except that therays after passing through the mirror diverge, and so have … Figure 101. —Construction of Image when Object is between Fand the Lens. to be produced backward to determine the point where theymeet. (Figure 101.) 116 REFRACTION AND LENSES The image, then, is (1) on the same side of the lens as theobject, (2) larger than the object, (3) erect, and (4) virtual.…
Physics
