Brechner, Claude H., 1887- [from old catalog] · Boston, New York [etc.] Allyn and Bacon · leaf 249

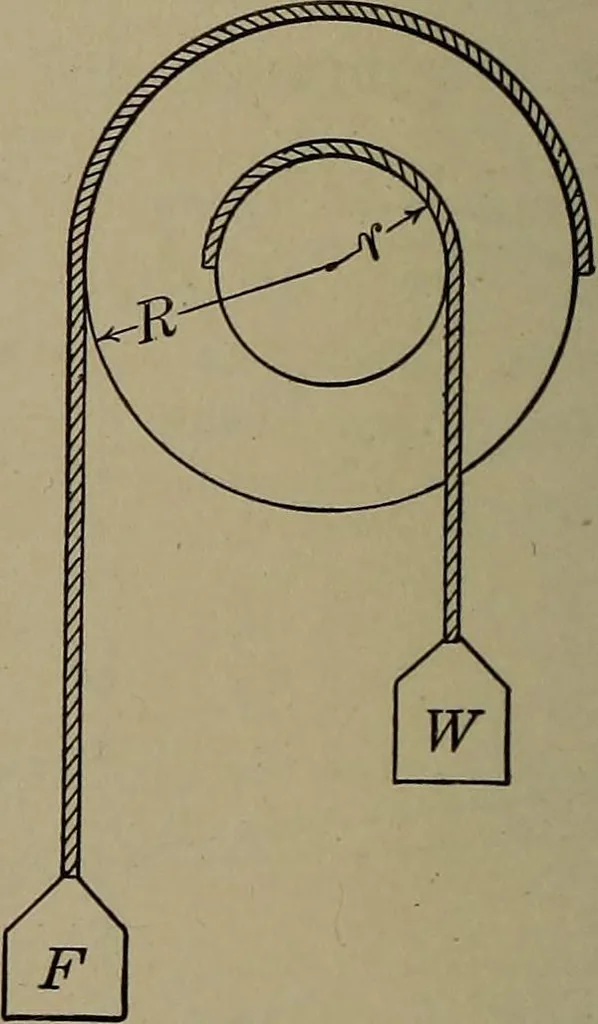

>p Name five other applica-tions of the lever, andclassify them. 282. Wheel and Axle.—The wheel and axle is an-other simple machine verysimilar in action to the lever. It consists of a wheel andan axle rigidly fastened to-gether. (Figure 259.) Theforce (F) acts on a ropewound around the wheel, … Figure 258. — A Broom Used as aThird Class Lever. Figure 259. —TheWheel and Axle. INCLINED PLANE 239 and the weight (IF) is hung on a rope wound in the oppositedirection on the axle. When the force moves down, the weight moves up. Theaction is the same as in the lever.The radius (R) of the wheel…
Physics
