The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 359

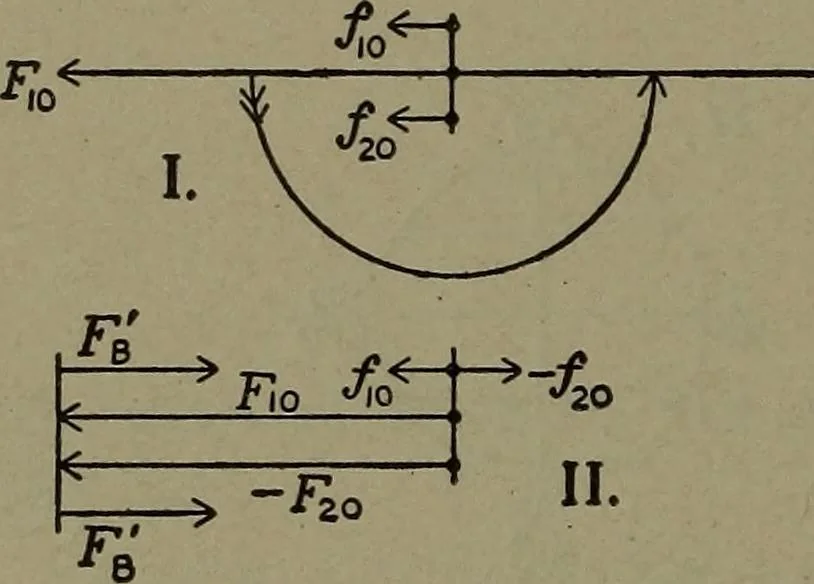

Jzo II. V ~~JZQ 1 … 342 WORKING AND CONSTRUCTION OF THE ENGINE. [Chap. VII. we reverse F20 by the device of swinging it bodily into the plane of Fw,we likewise reverse /20; and then, as shown at III, the rod effects com-bine. Of course, the radial resultant of the two F0s will be used, as inFig. 195. Another example…
Steam-engines · Steam-turbines
