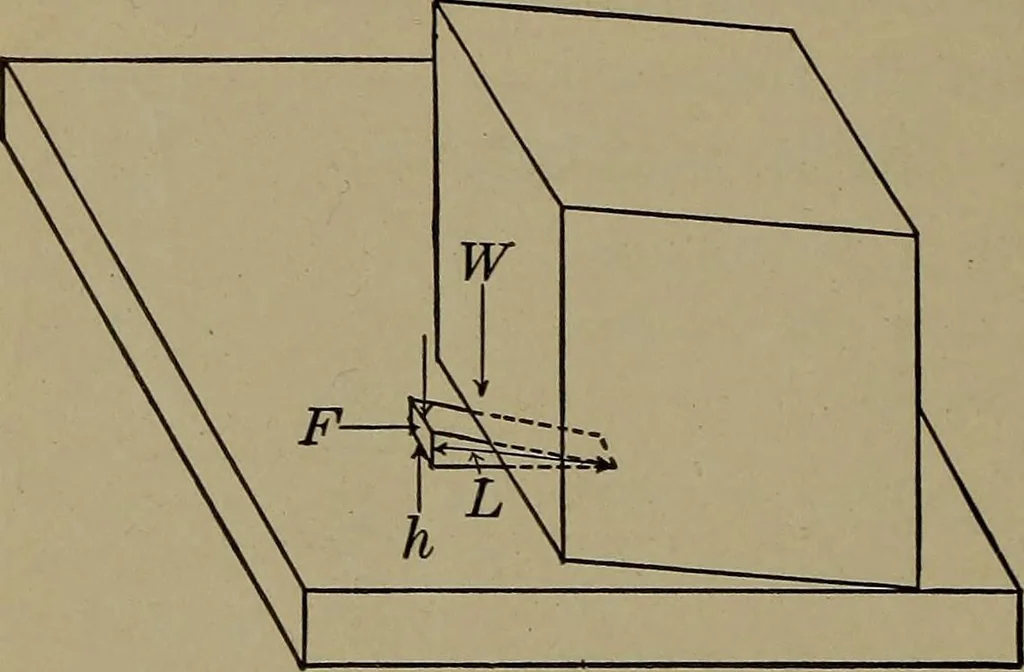

Figure 271. —A Jack Screw. 244 MACHINES … Figure 272. — A Wedge. 288. Screw and Wedge. — The screw and the wedge areboth very much the same as the inclined plane. As is shownby Figure 271, the screw is merely a spiral inclined plane which is made to moveunder the weight,thus forcing theweight to move. Likewise Figure 272 shows that the…
