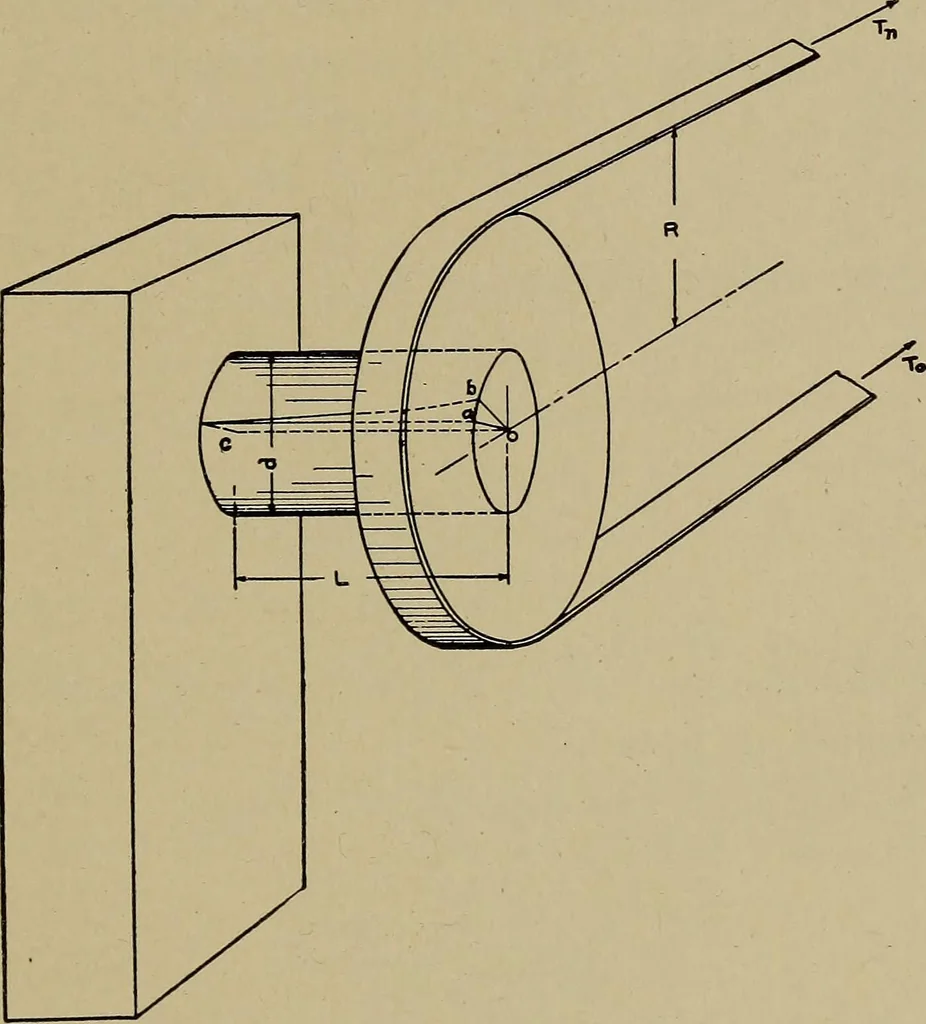

oment and, there-fore, the transverse deflection. The angular deflection can be de-creased only by bringing the resistance and load nearer together. Note. • The above implies, of course, that the diameter of the shaft is notchanged, it being obvious that increase of diameter means increase of… … Fig. 65. Fixed Shaft with Belt a shape like a bowstring when it. is vibrated, and smooth actioncannot be maintained. It is necessary to carry the cases of Figs. 64 and 65 but a singlestep farther to illustrate the actual working conditions of shaftingin machines. Suppose the rigid post to have the…
