Brechner, Claude H., 1887- [from old catalog] · Boston, New York [etc.] Allyn and Bacon · leaf 60

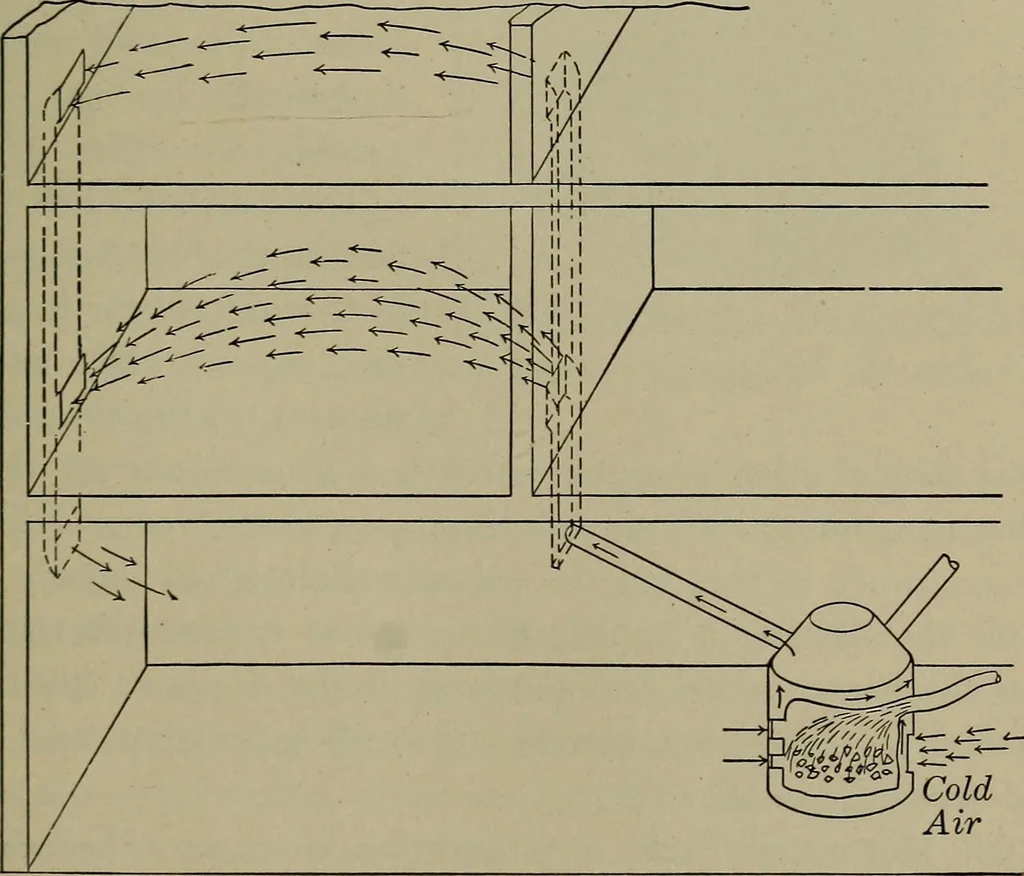

Figure 33. — Draft in a Kitchen Range. goes up to the fire-box. Here it becomes hot and, with thesmoke, passes up over the oven, down at the end and under … Figure 34. — Diagram of a Hot-air Heating System. 50 HEAT TRANSFERENCE the hot-water reservoir, then under the oven, and finallyup, at the back of the oven, to the stove pipe. Thus wesee the hot gases pass completely around the oven, exceptin front, where the door is located. If the oven is not to…
Physics
